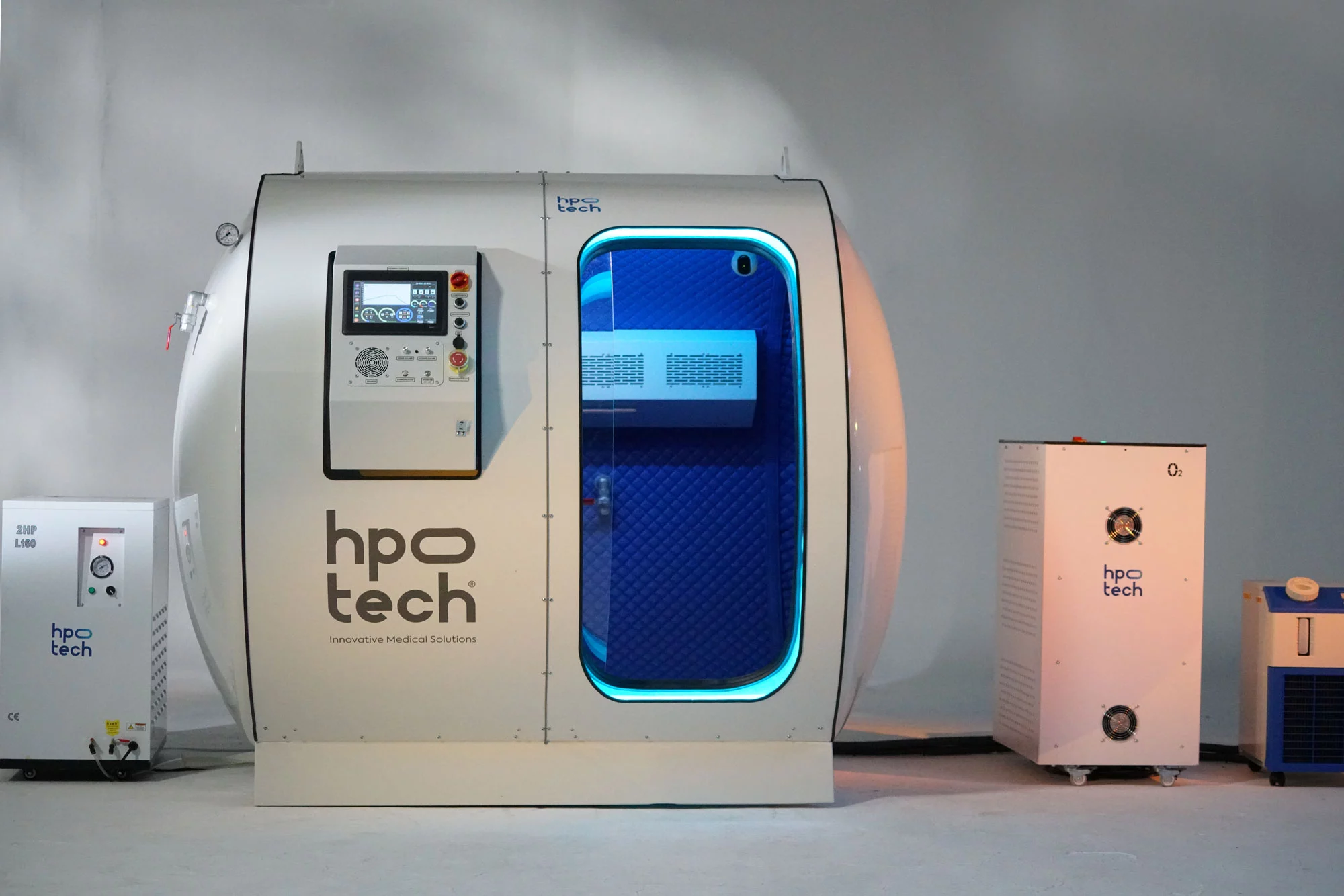

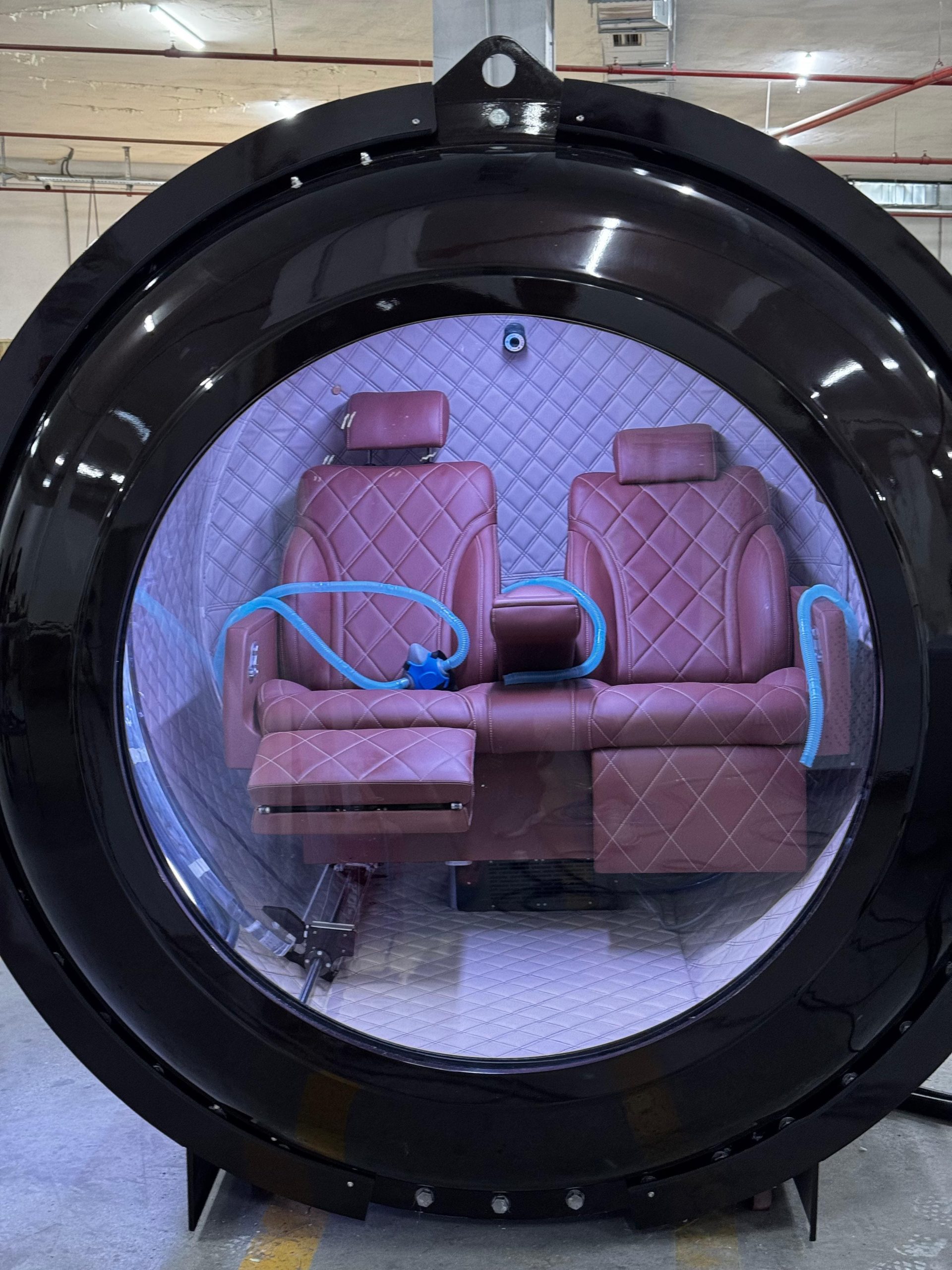

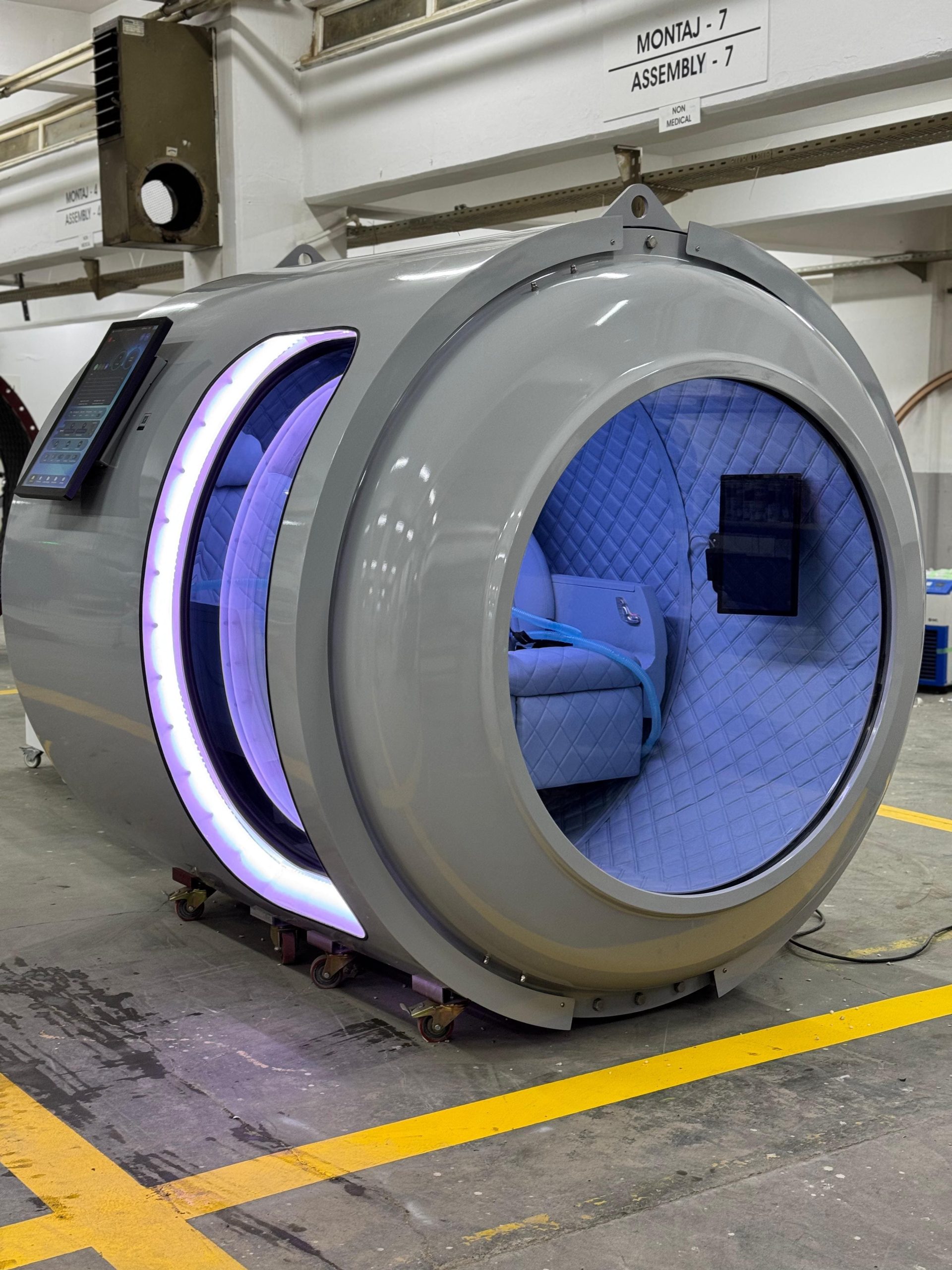

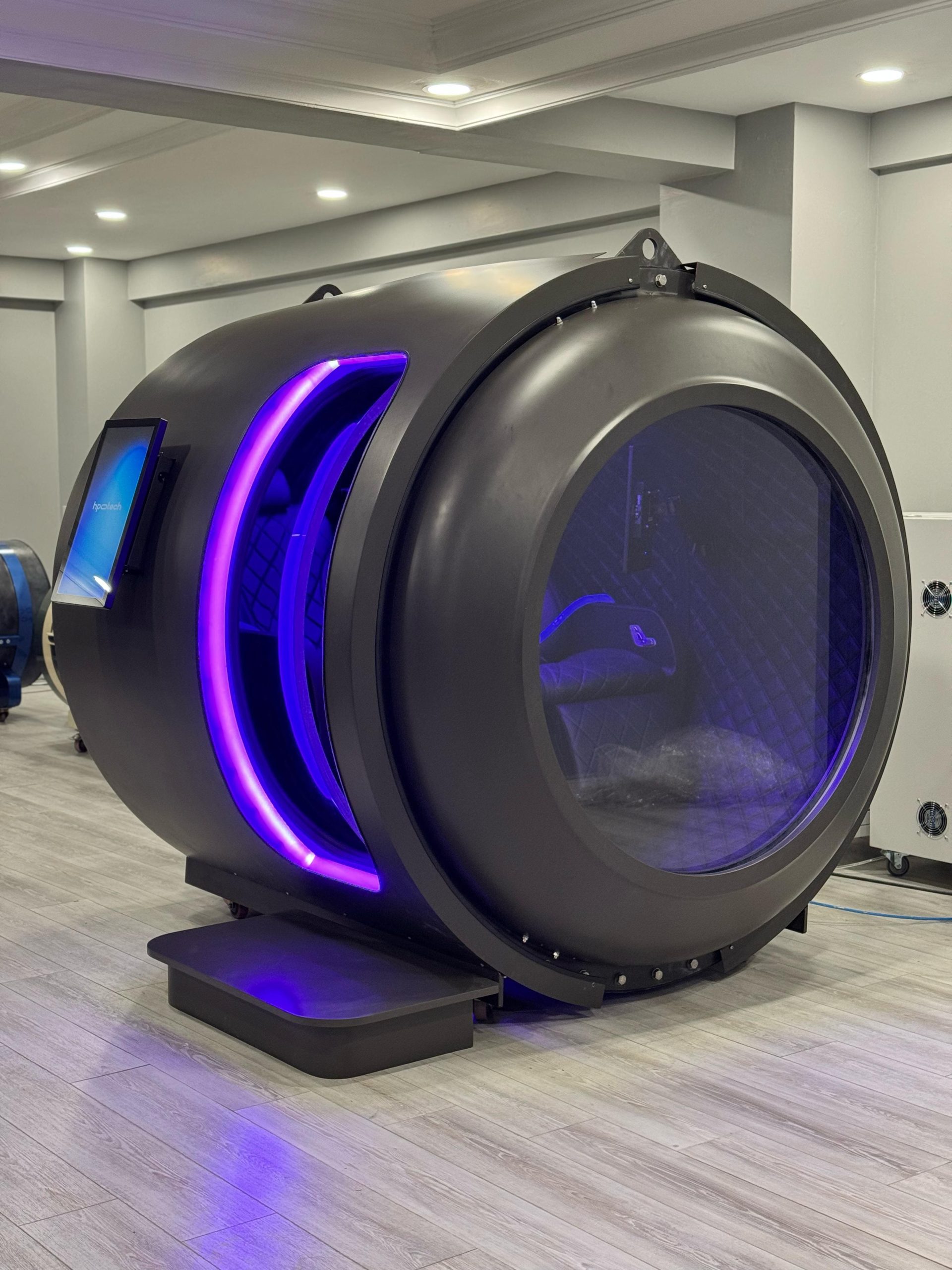

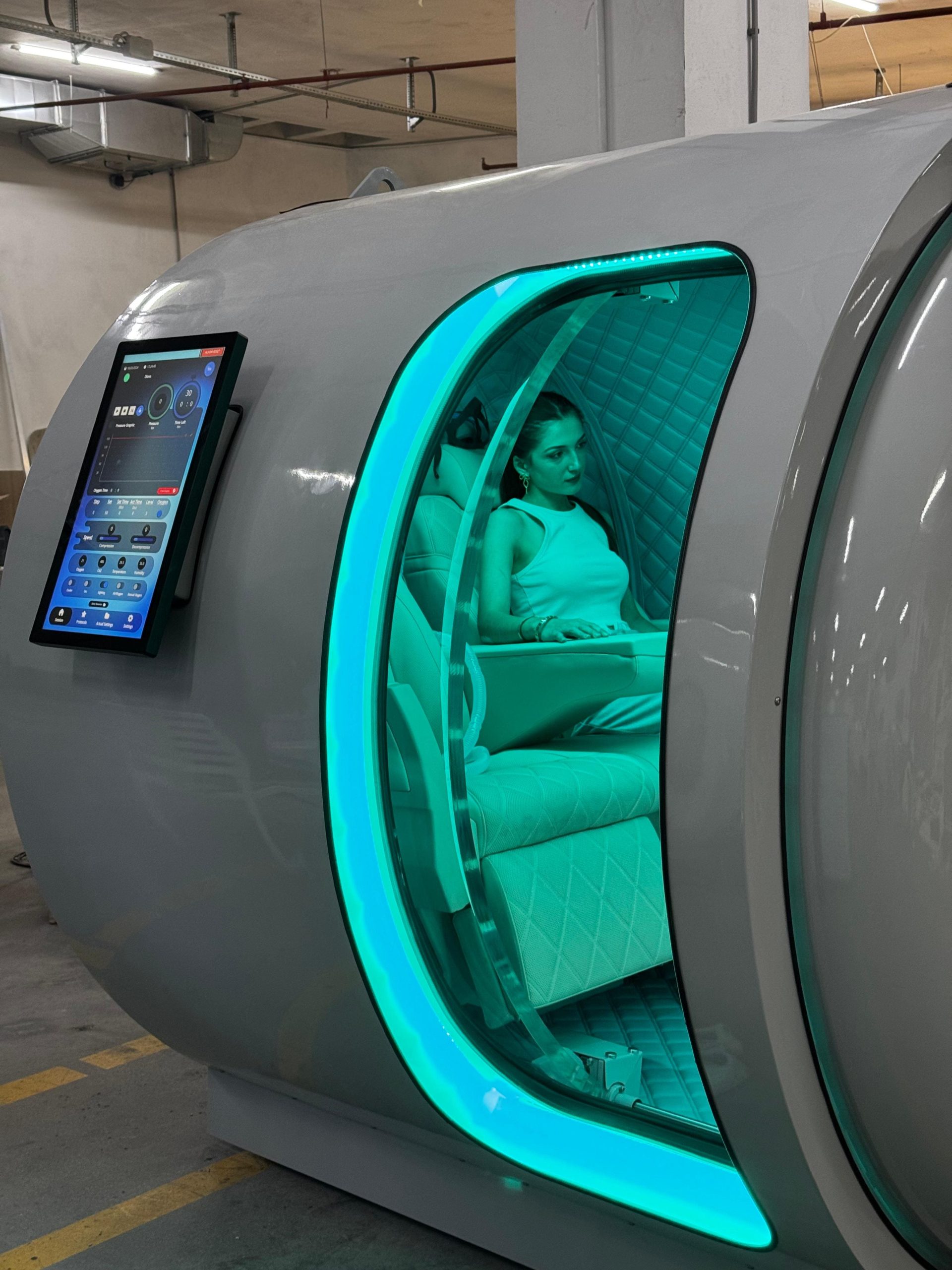

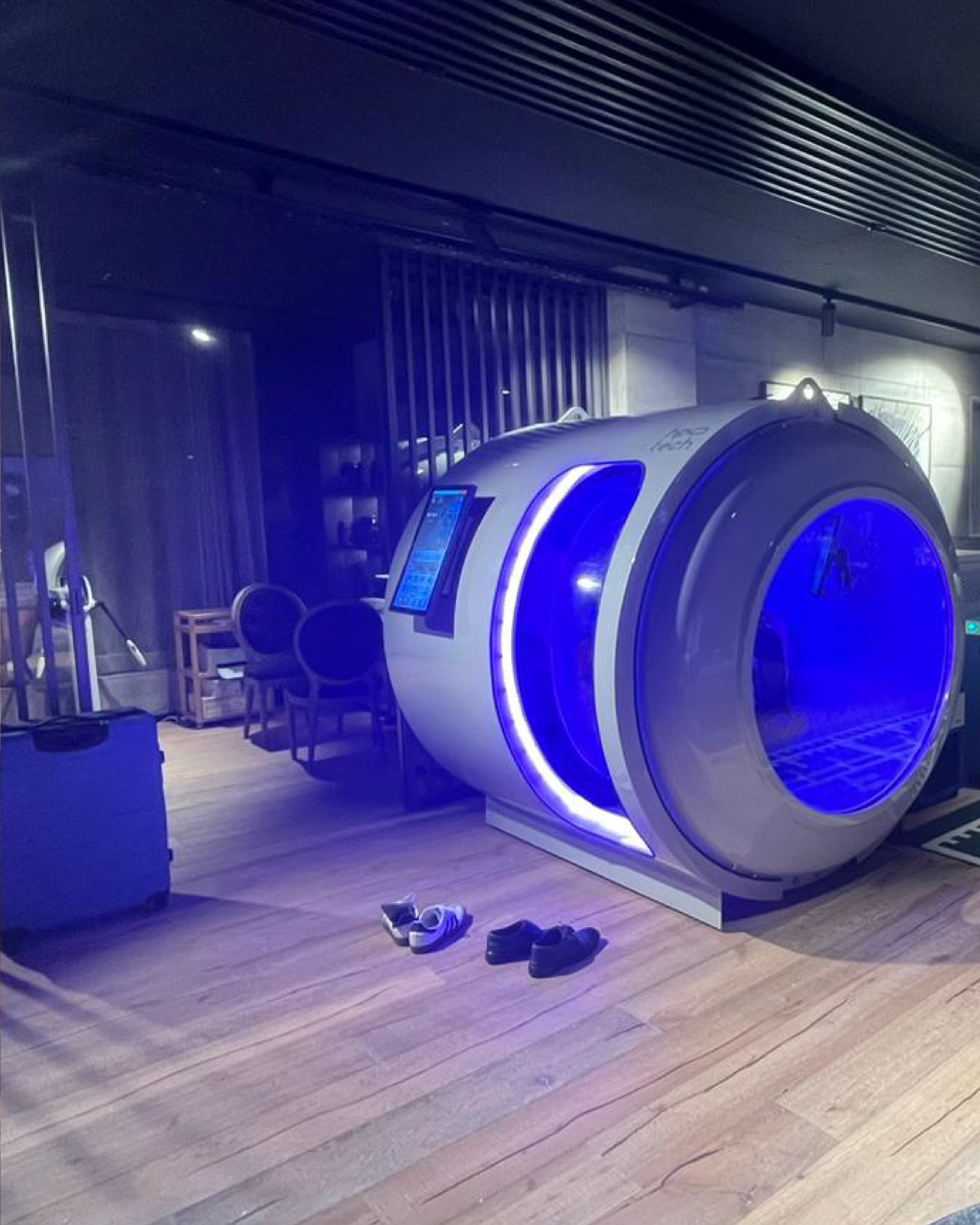

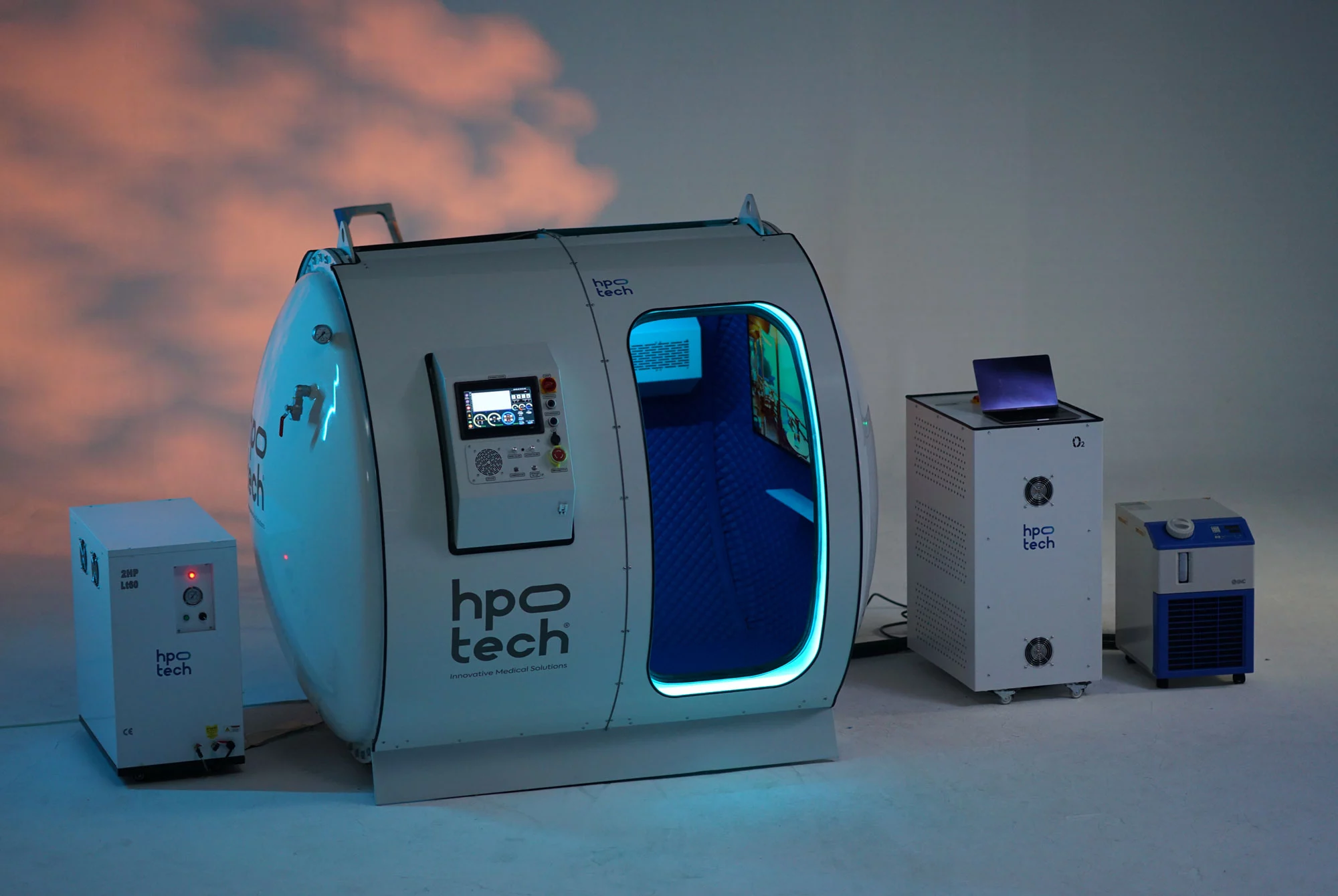

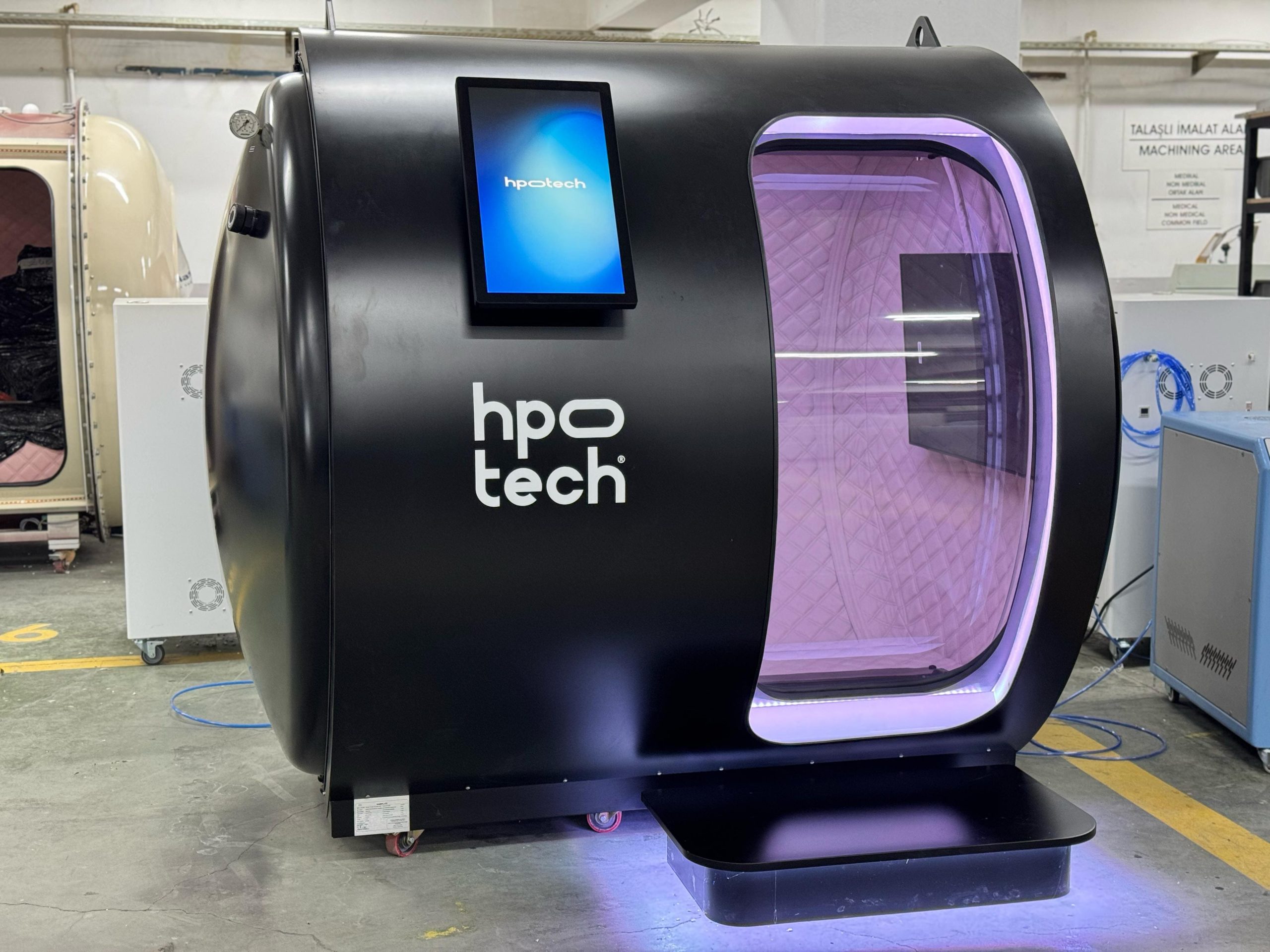

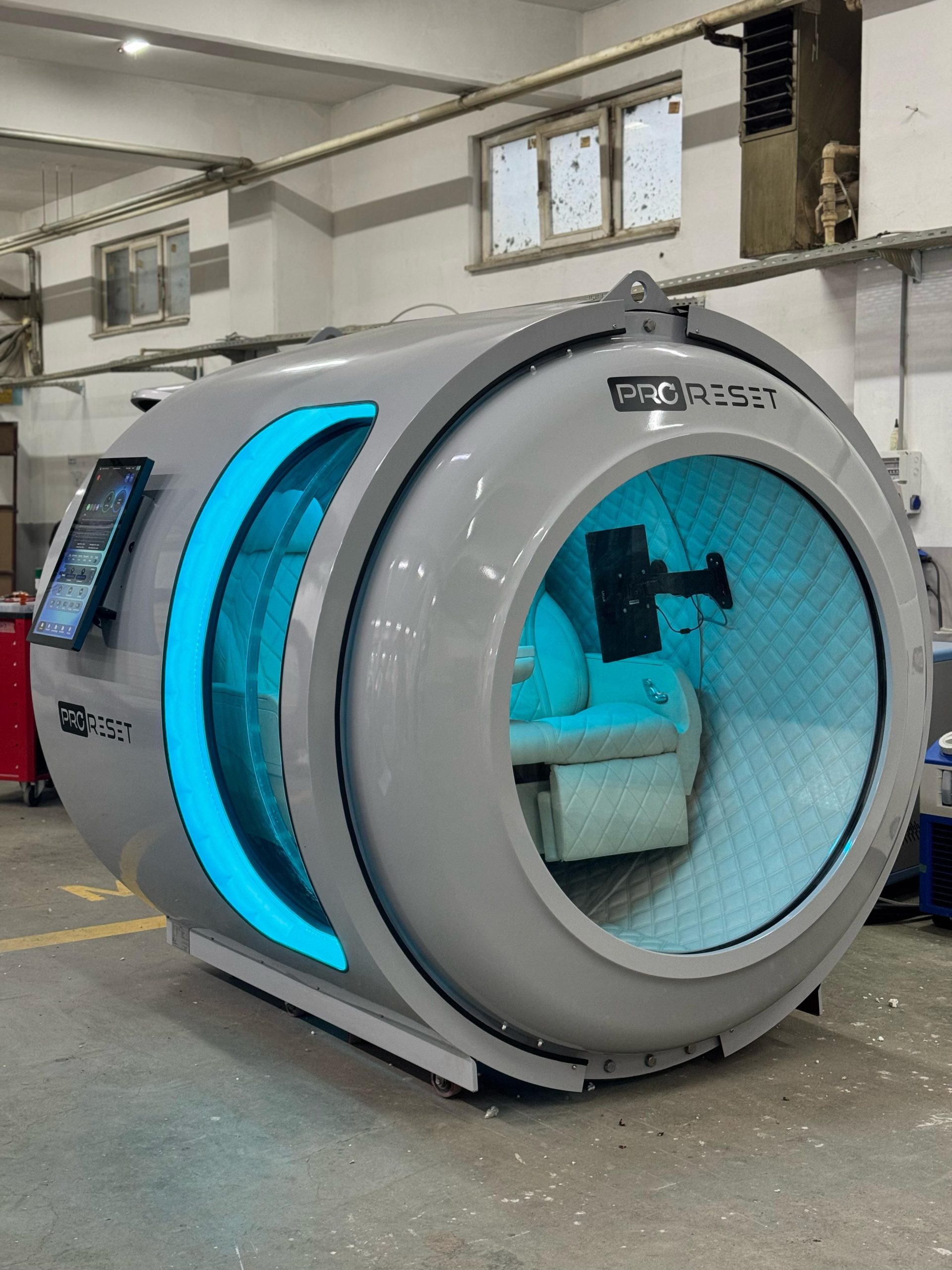

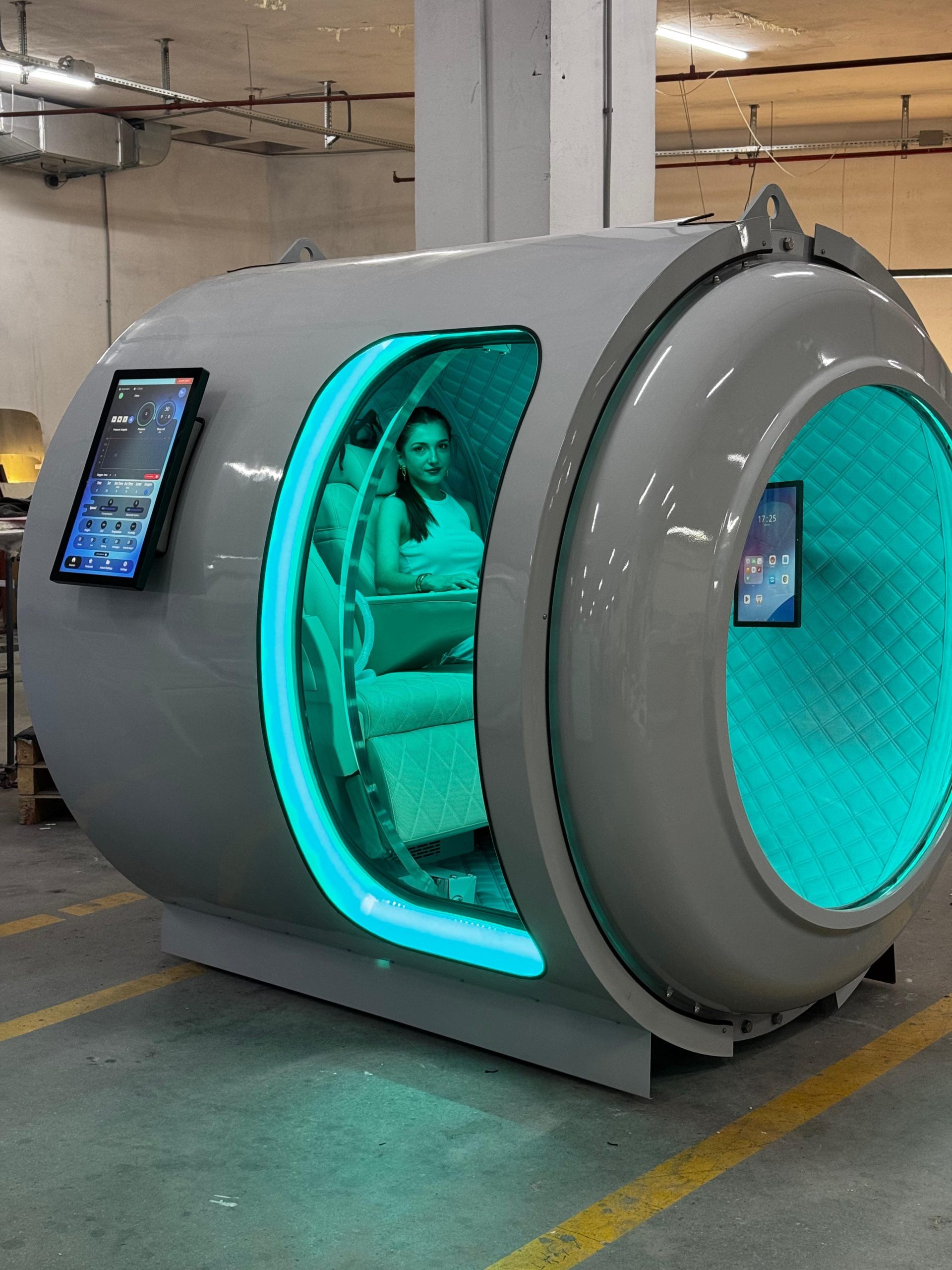

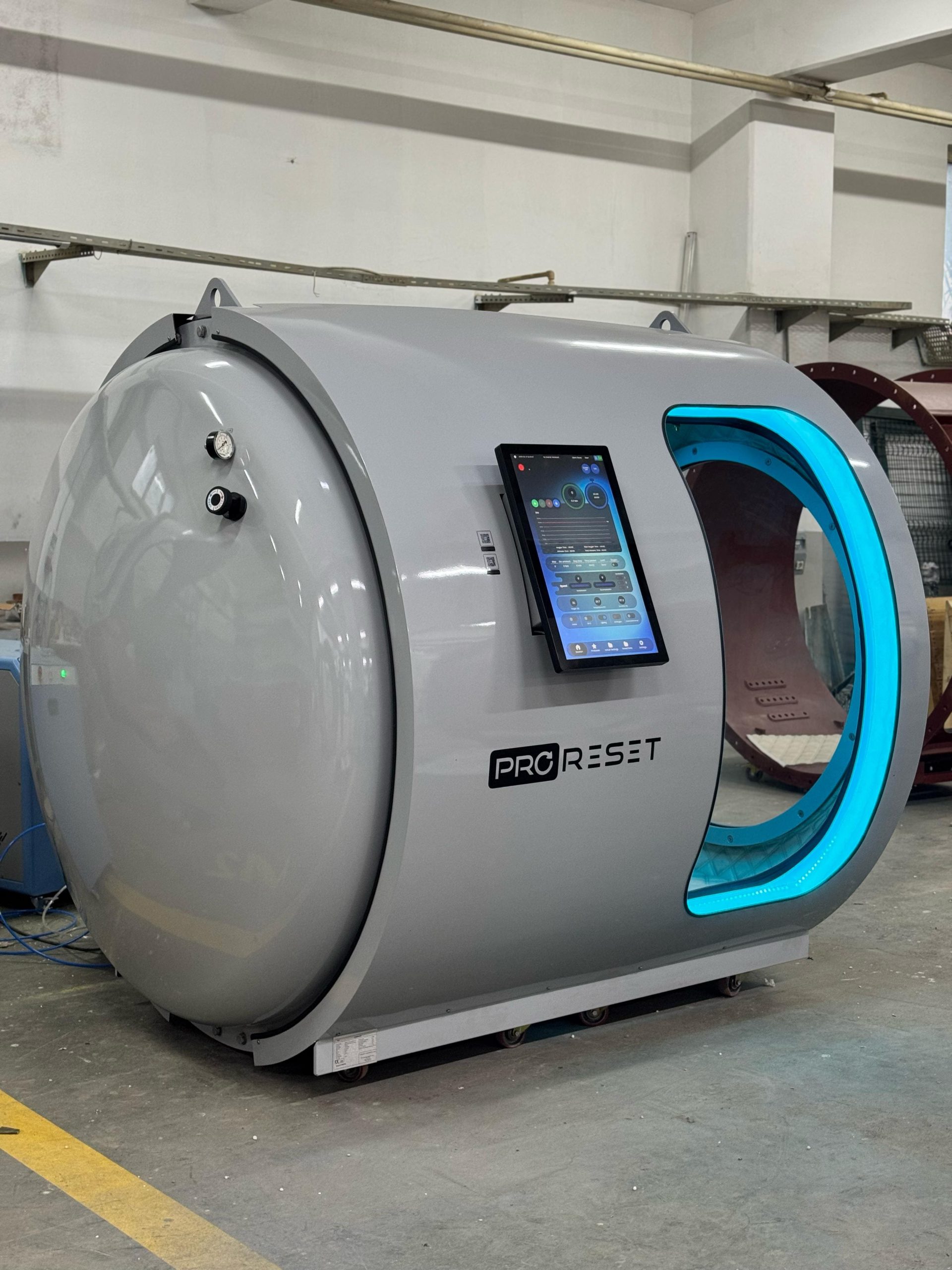

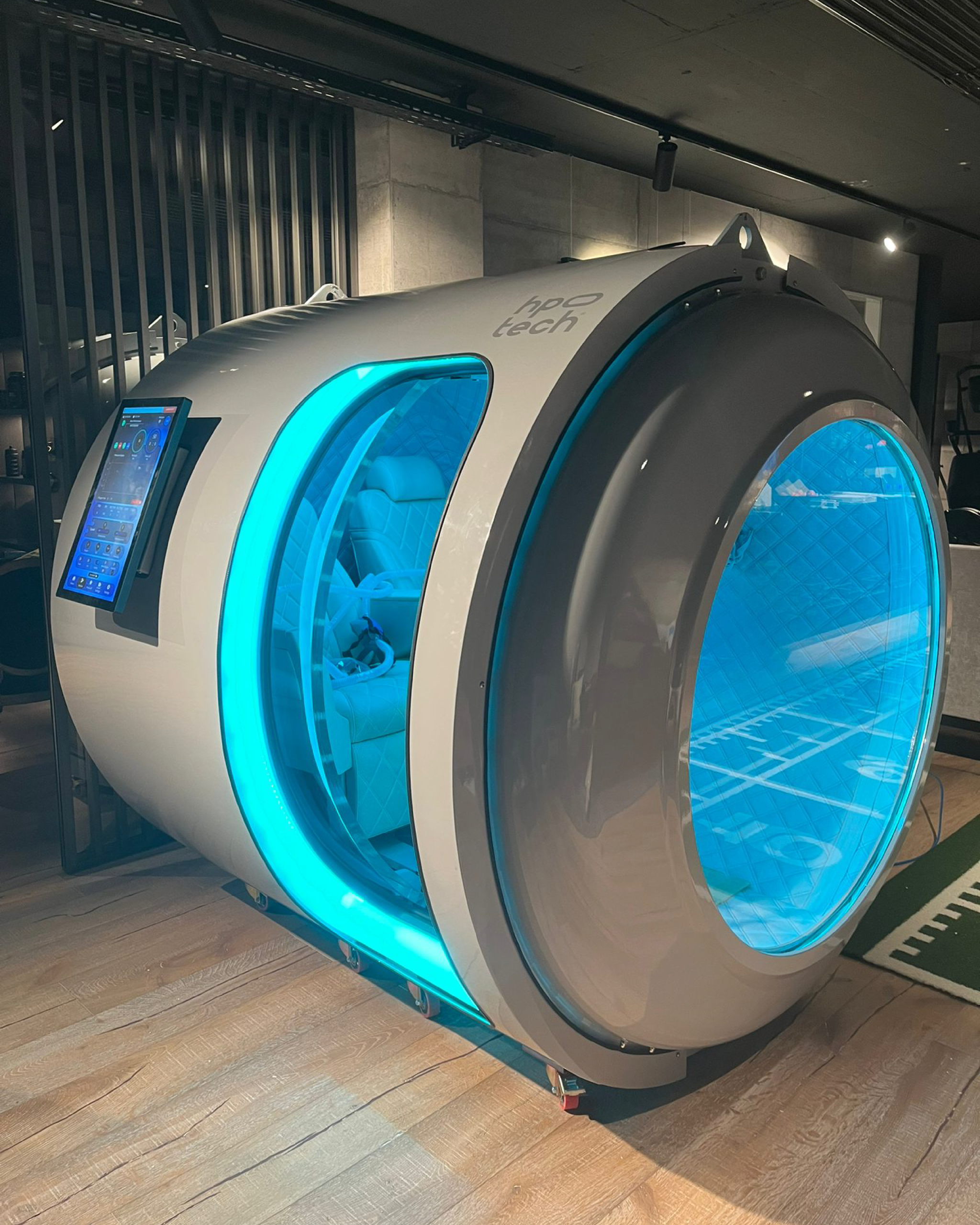

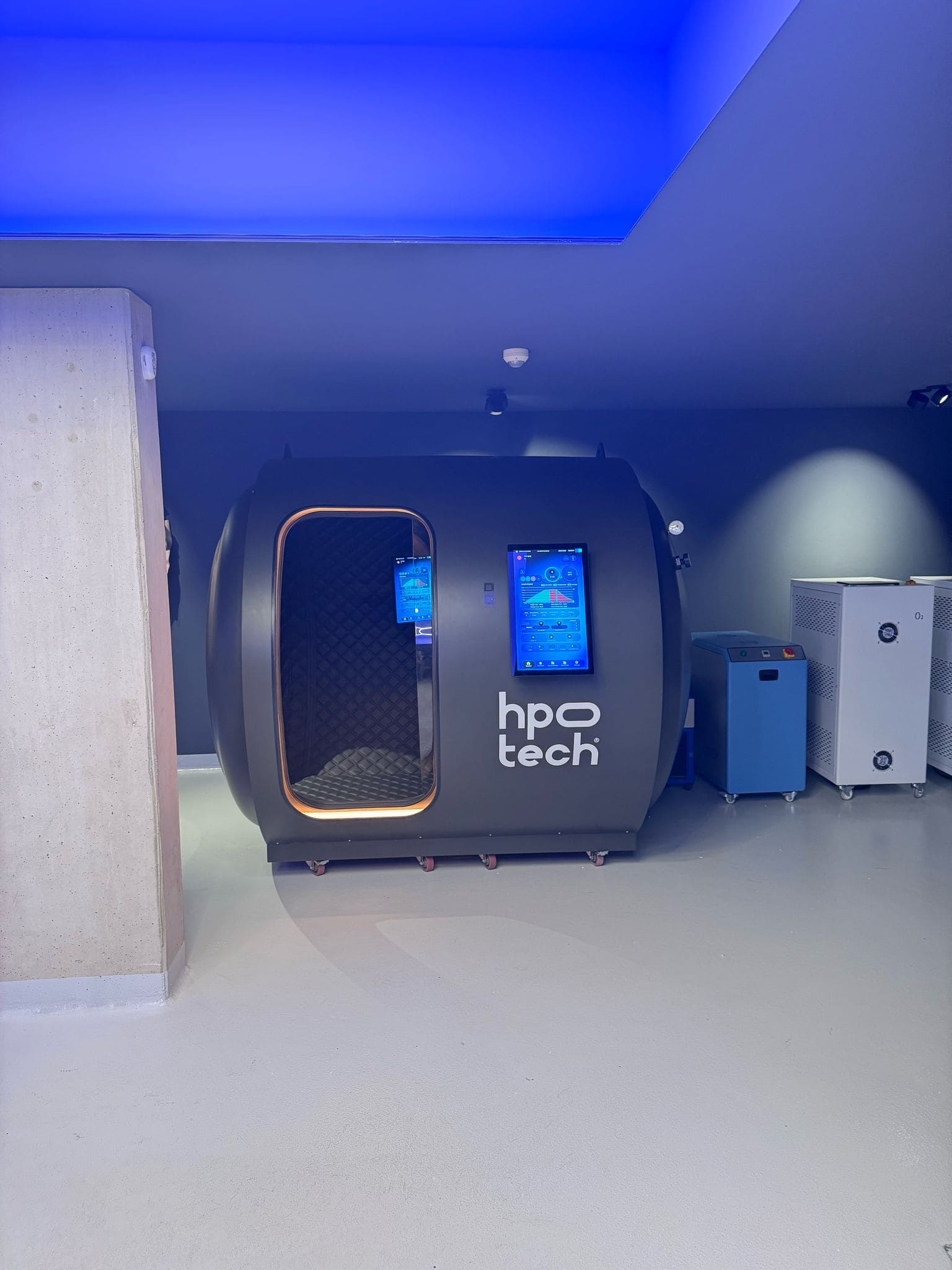

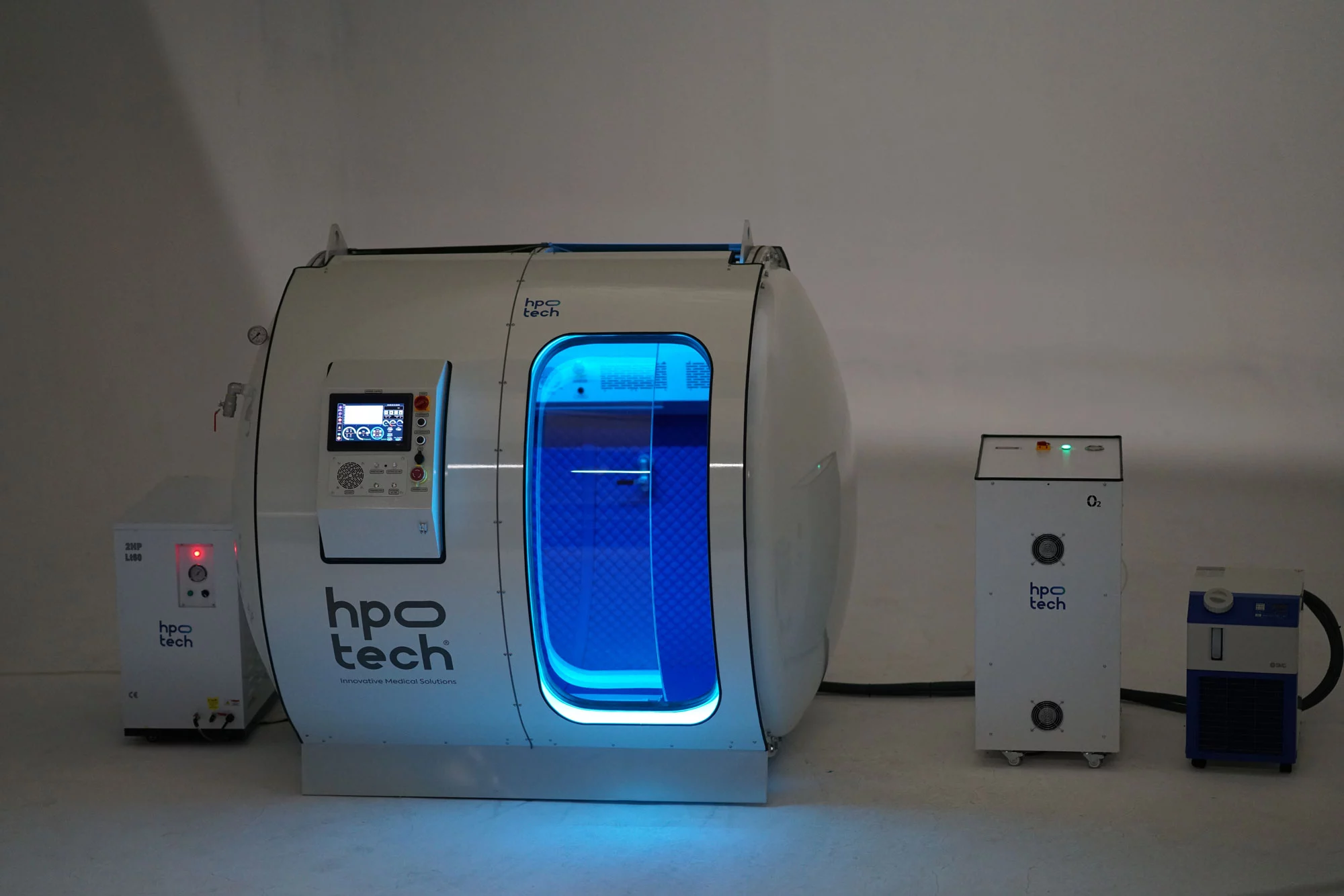

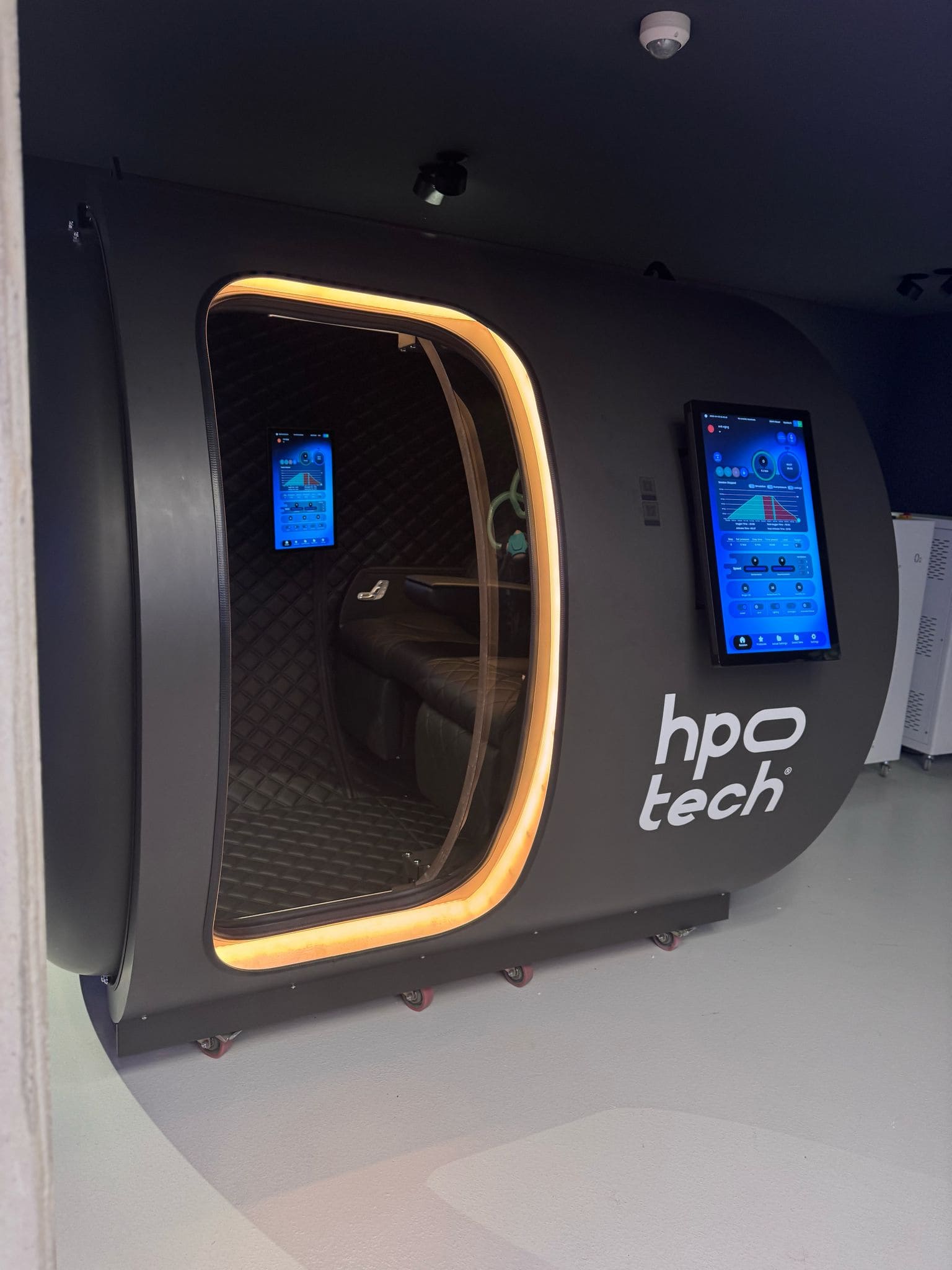

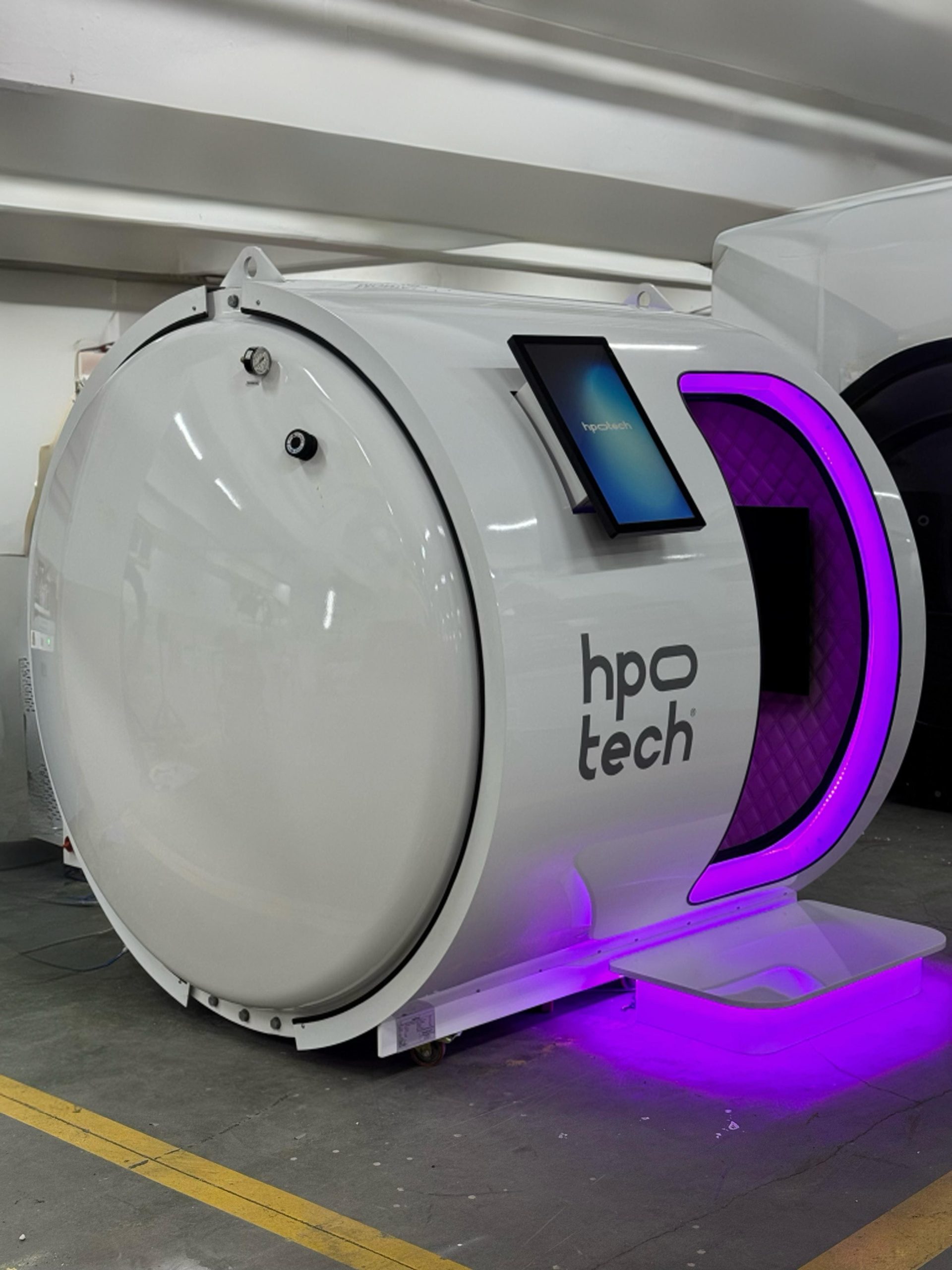

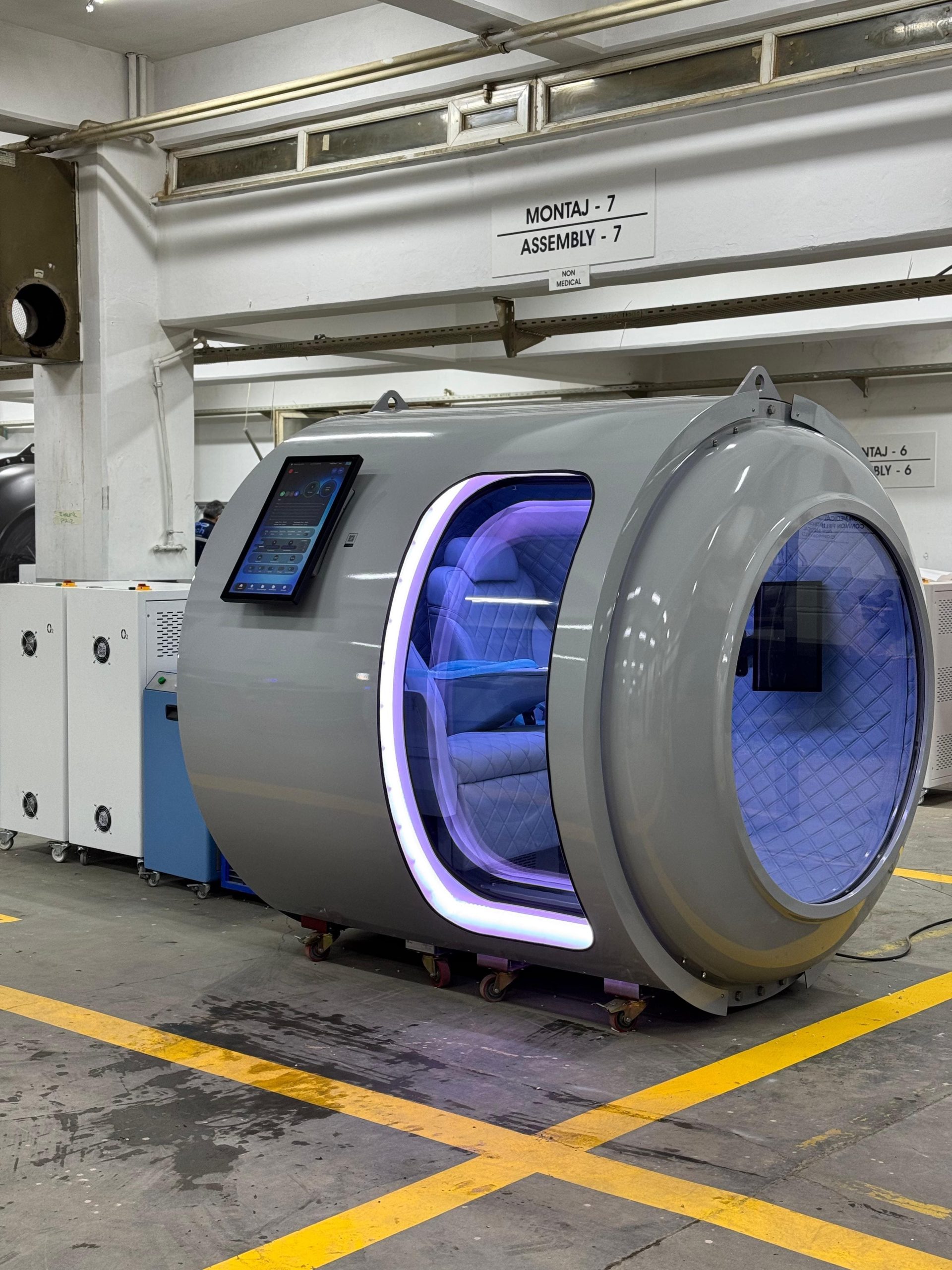

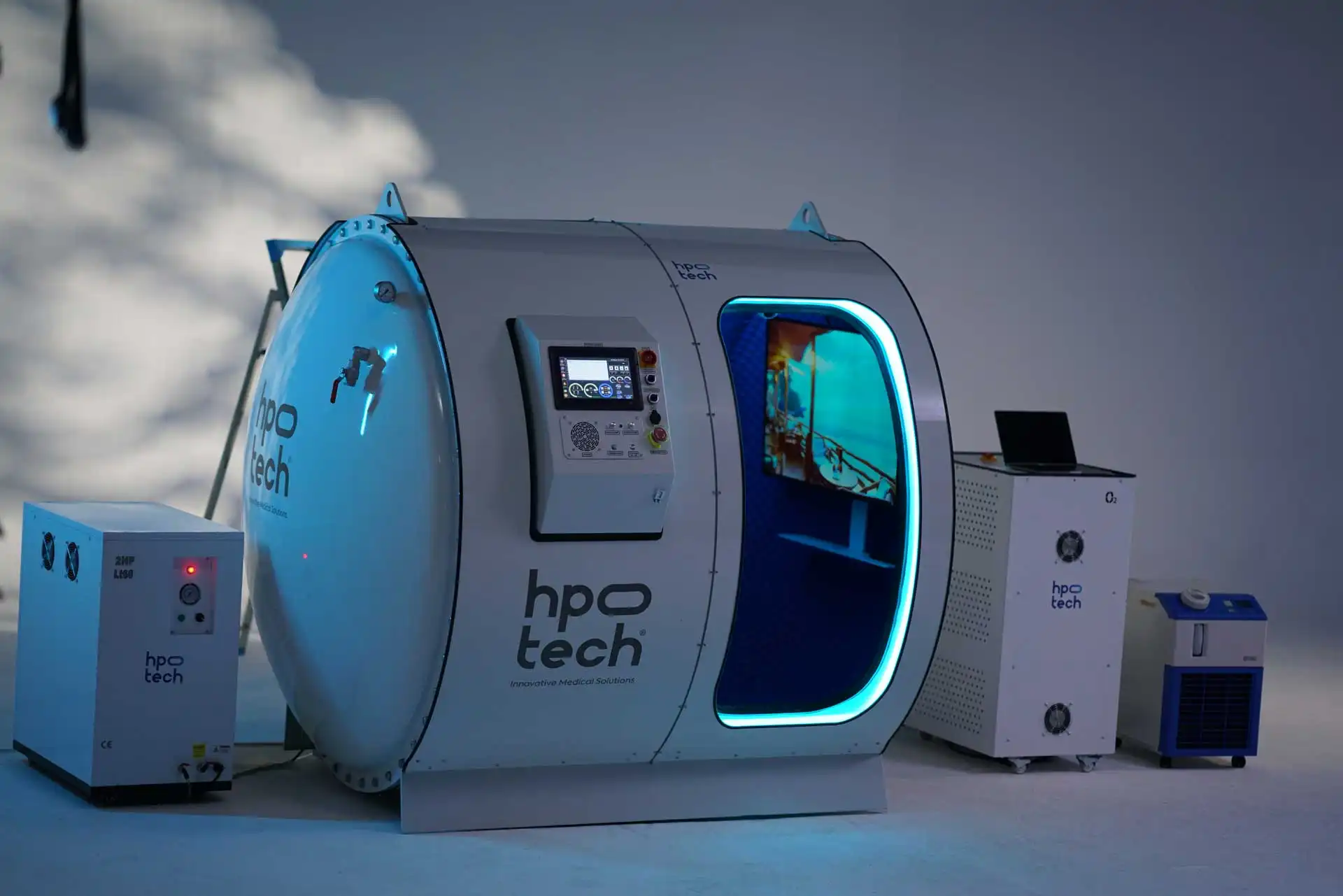

ATLANTIS
WELLNESS HYPERBARIC CHAMBER
2.0 ATA PRESSURE

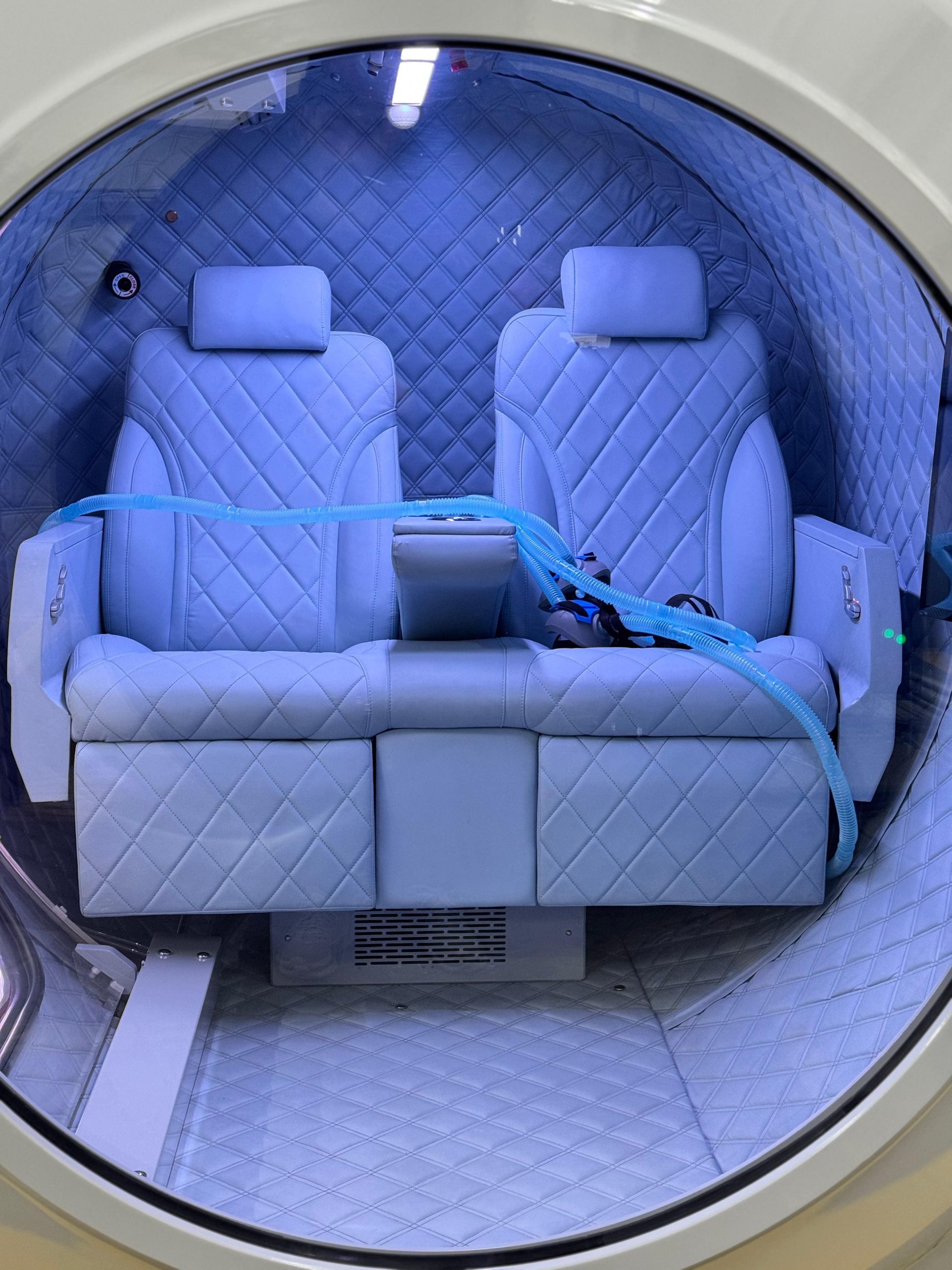

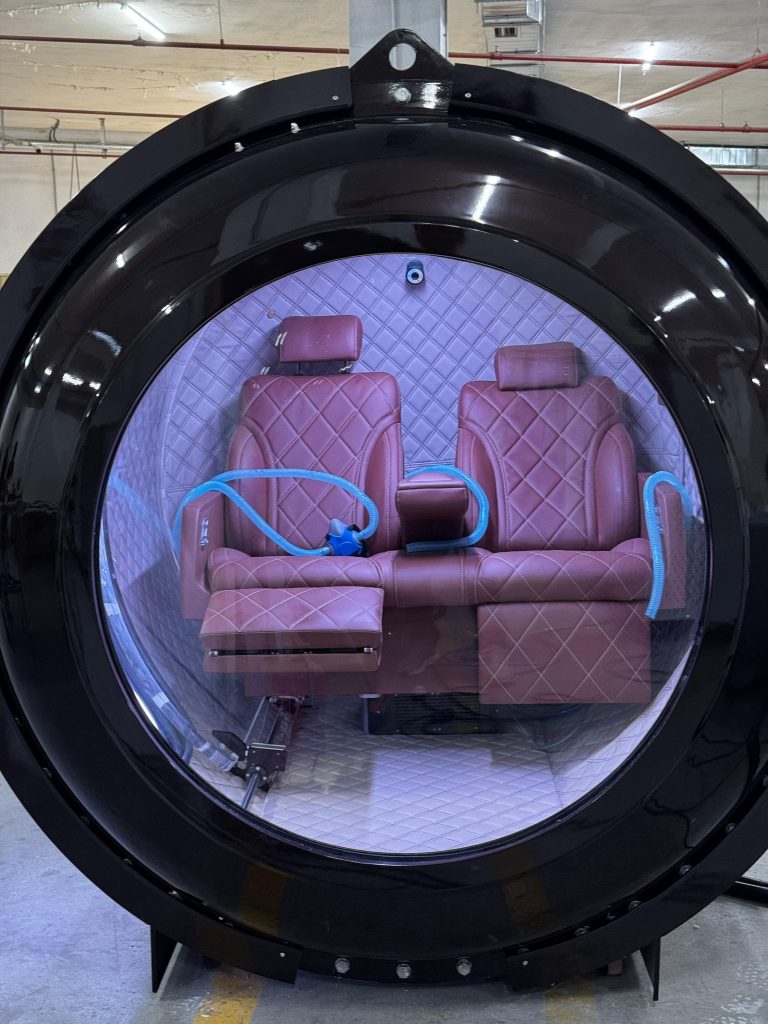

2-SEATER

The BIBS regulator is designed to circulate oxygen effectively through the polyurethane hose while removing carbon dioxide. This feature ensures a safe and controlled therapy environment and always pure oxygen breathing.

System features

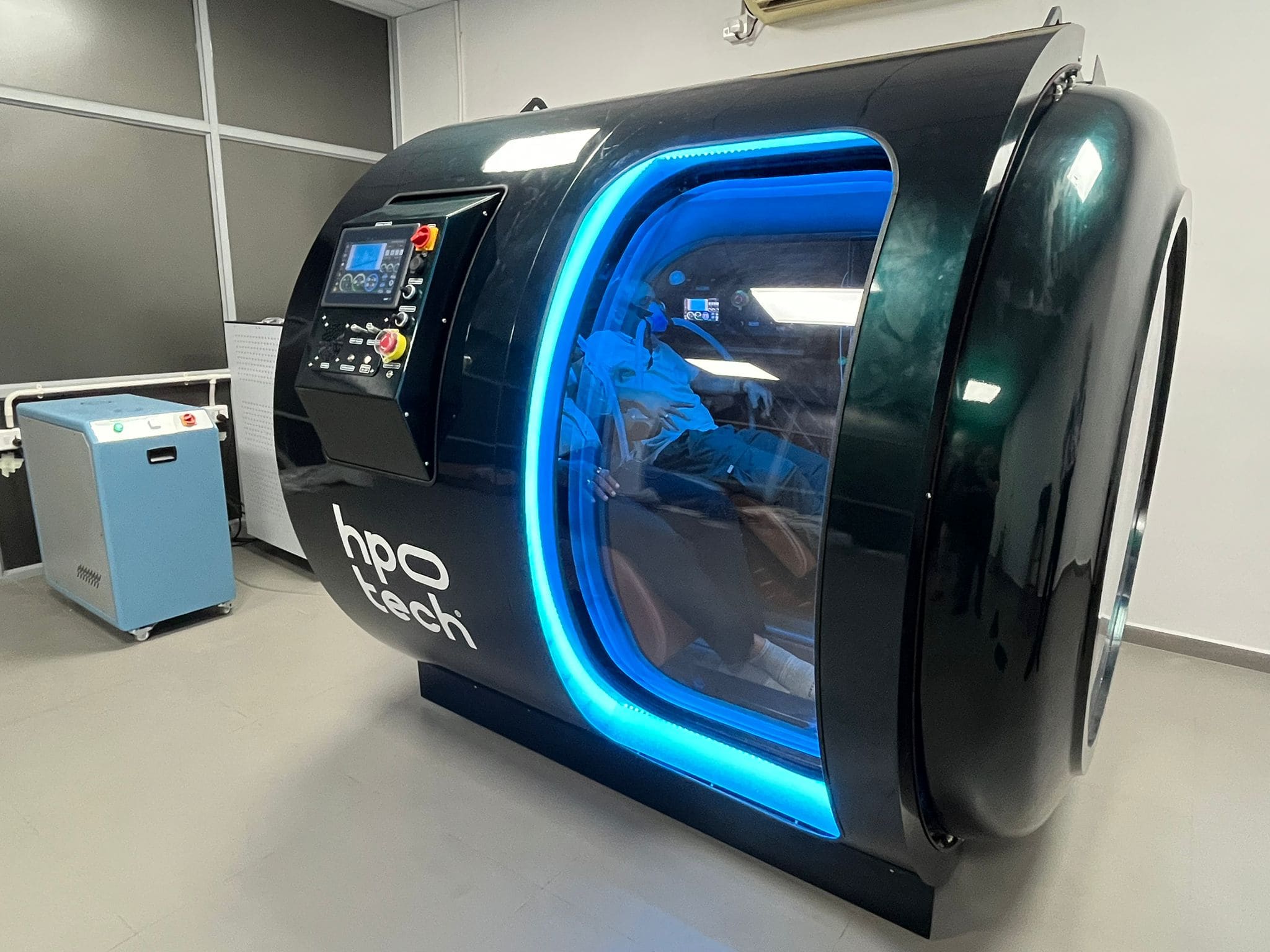

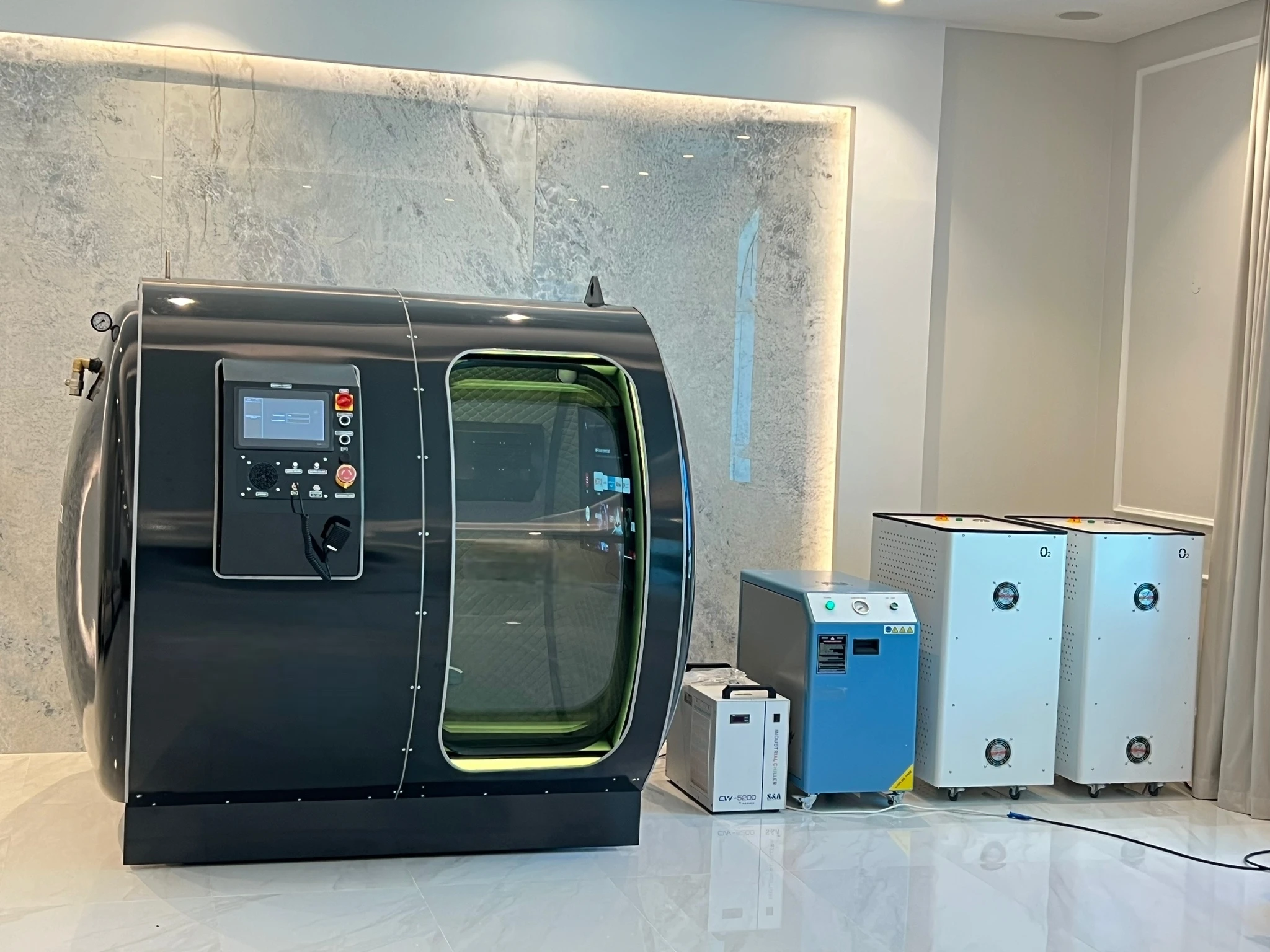

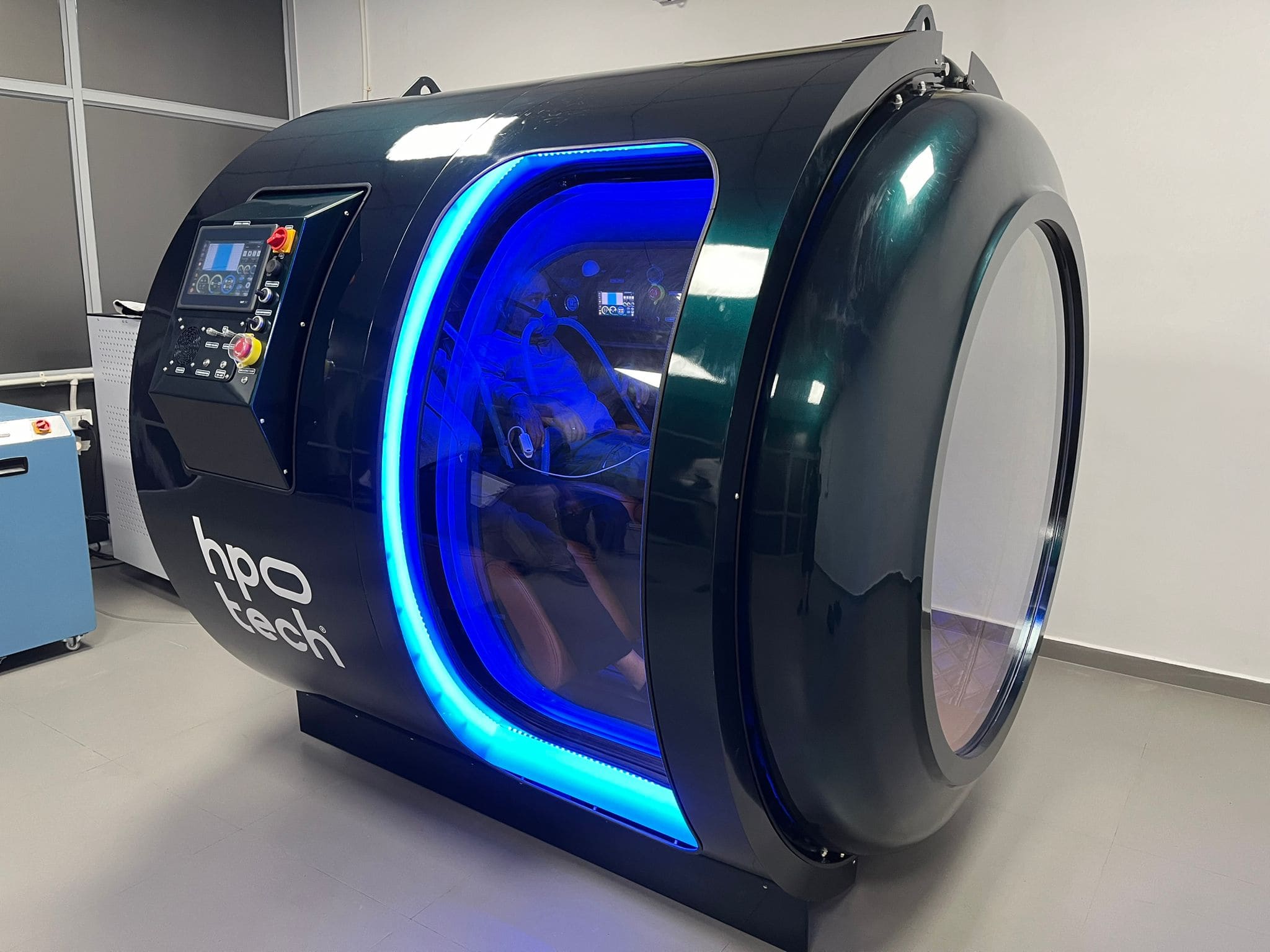

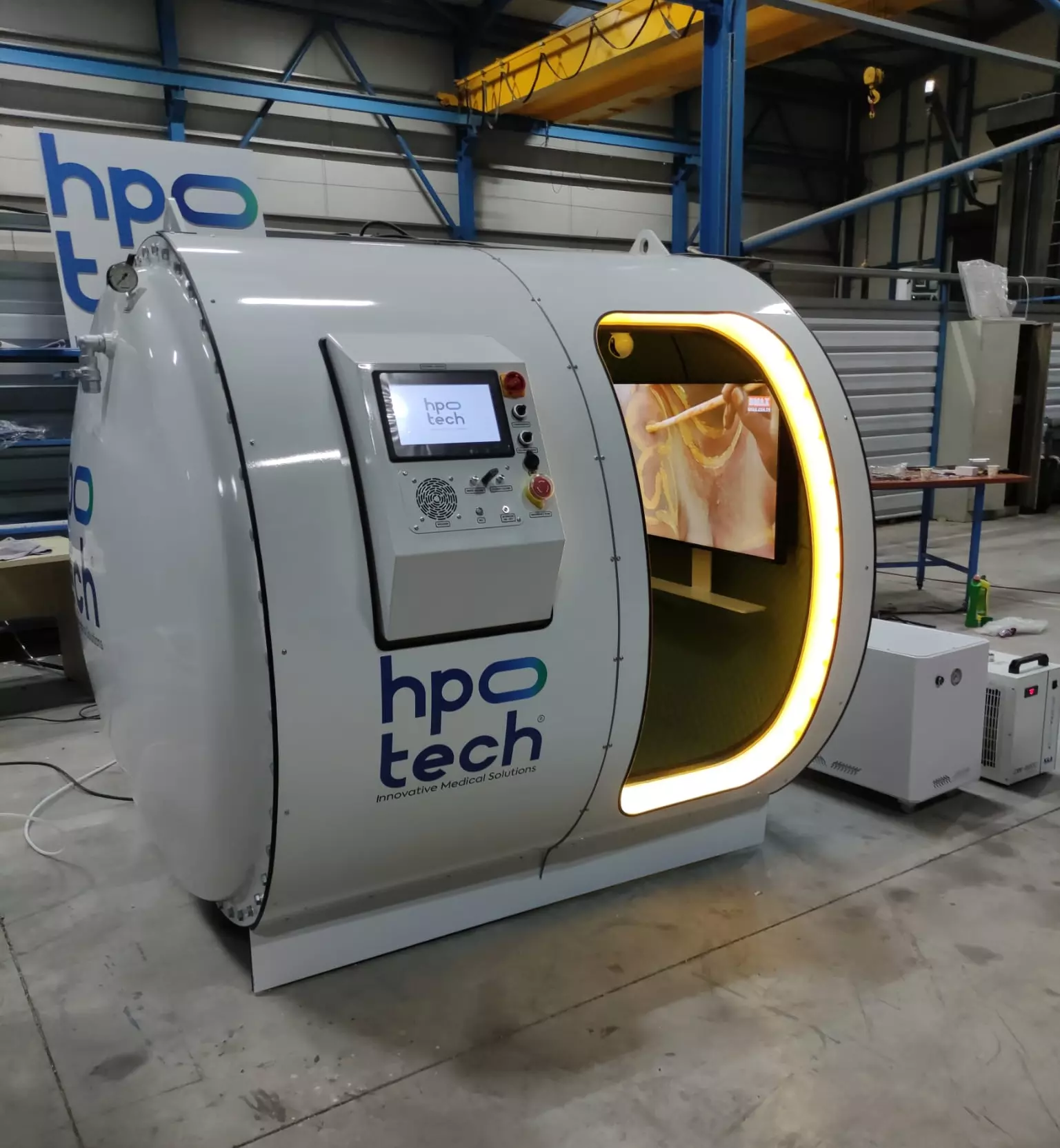

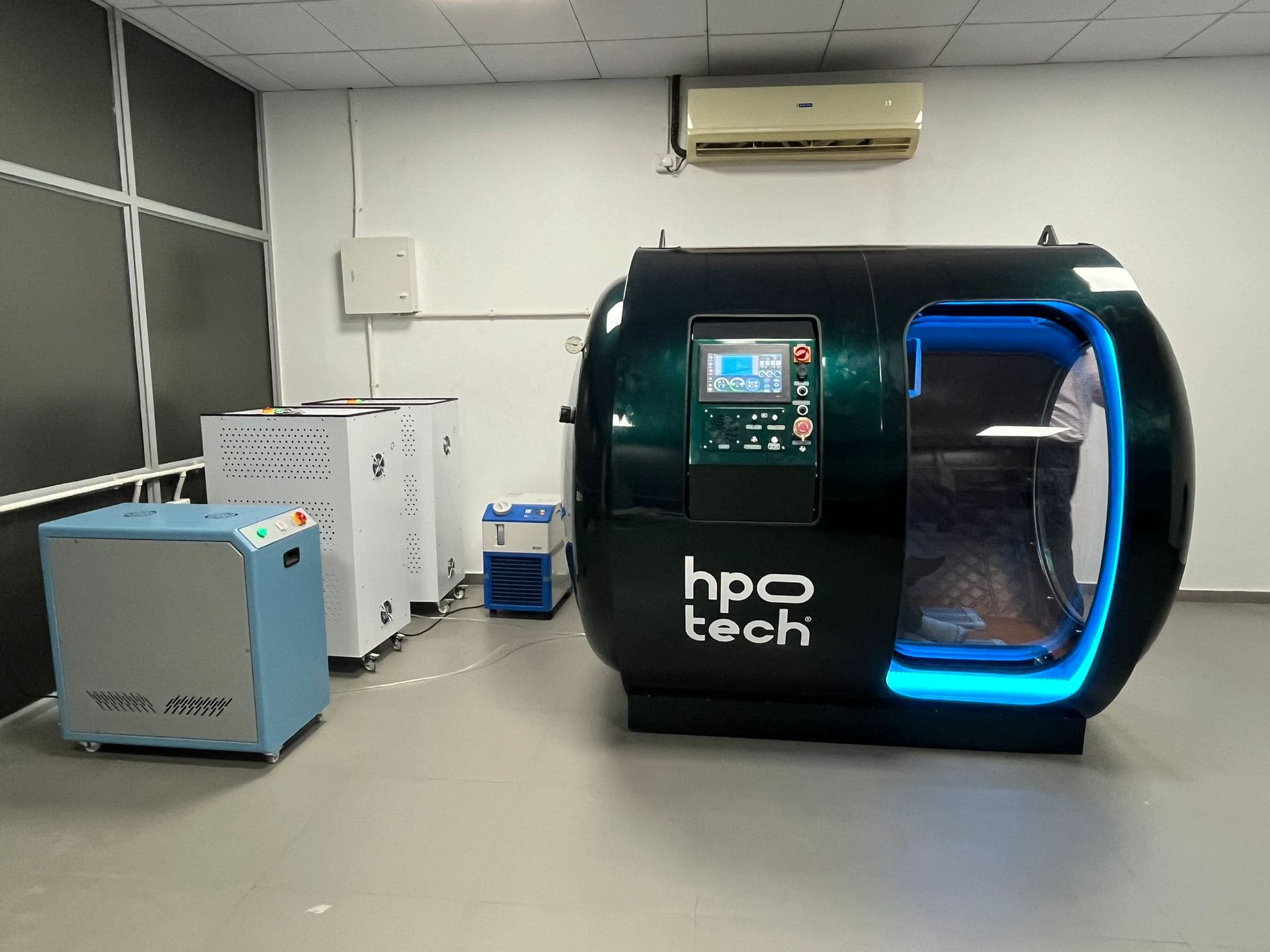

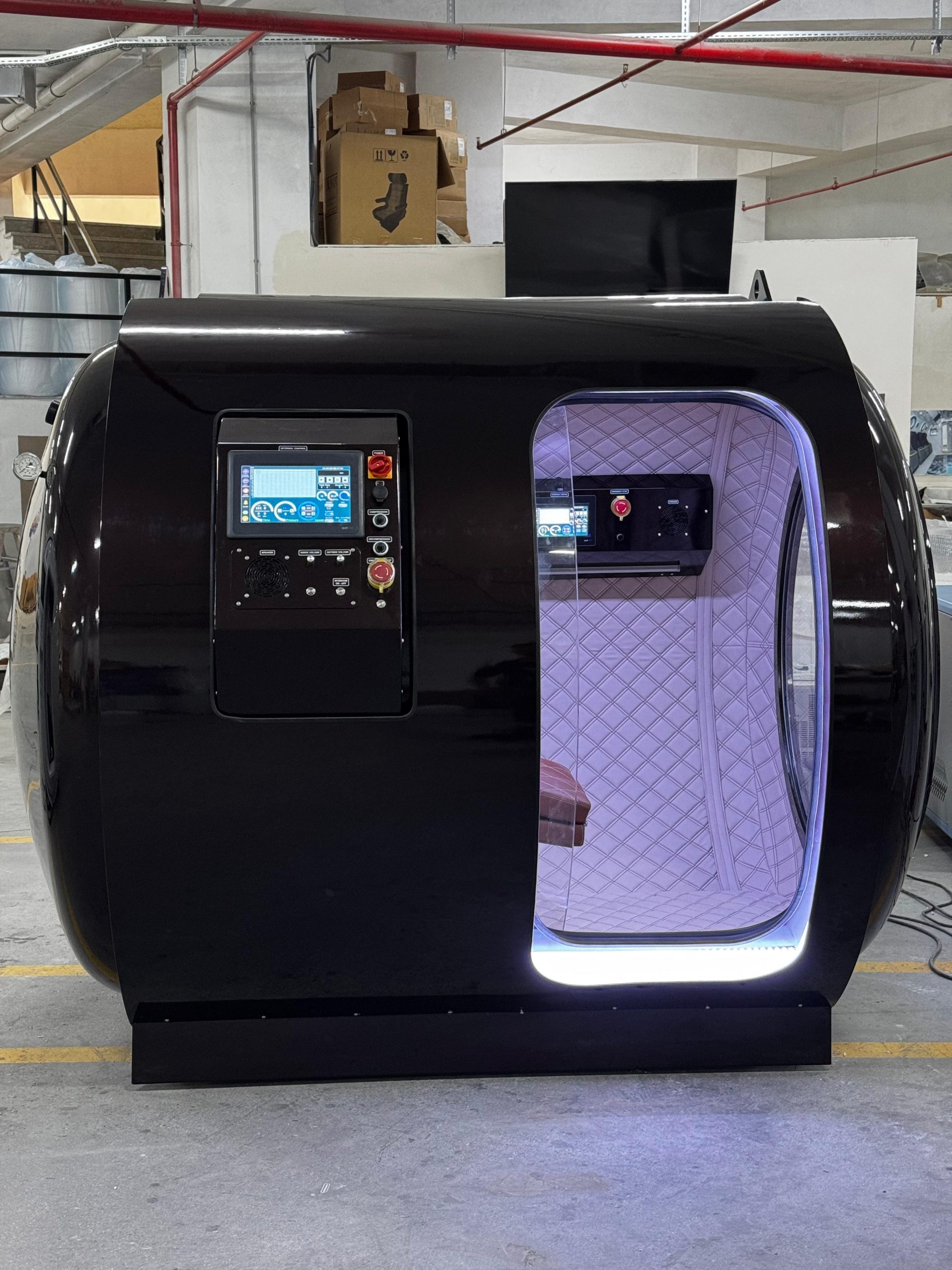

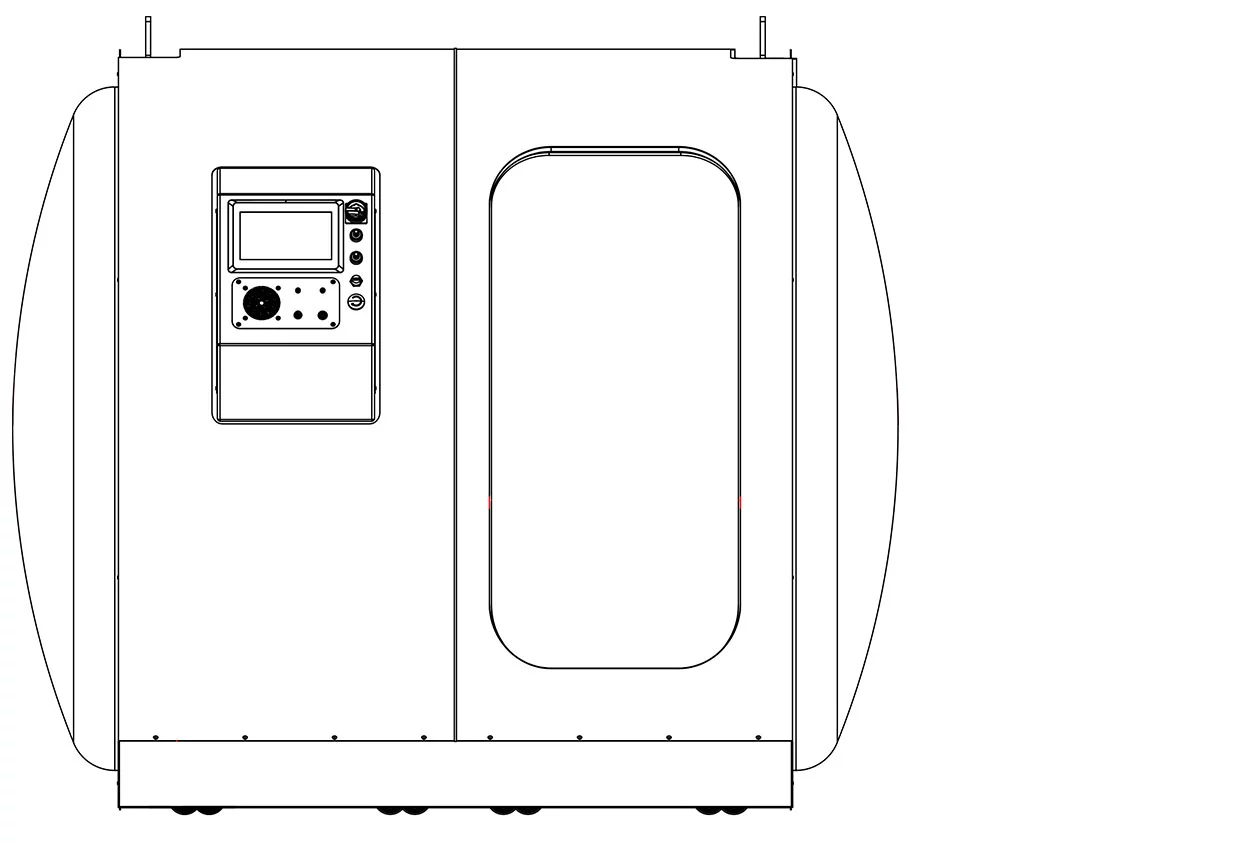

External Control Panel

Your command center for hyperbaric oxygen sessions

Navigate pressure adjustments, monitor vital information, maintain clear communication with your patient, and control every aspect of the chamber with confidence. Be prepared for any situation with manual overrides and an emergency stop button. Take control of patient well-being and elevate your hyperbaric therapy experience.

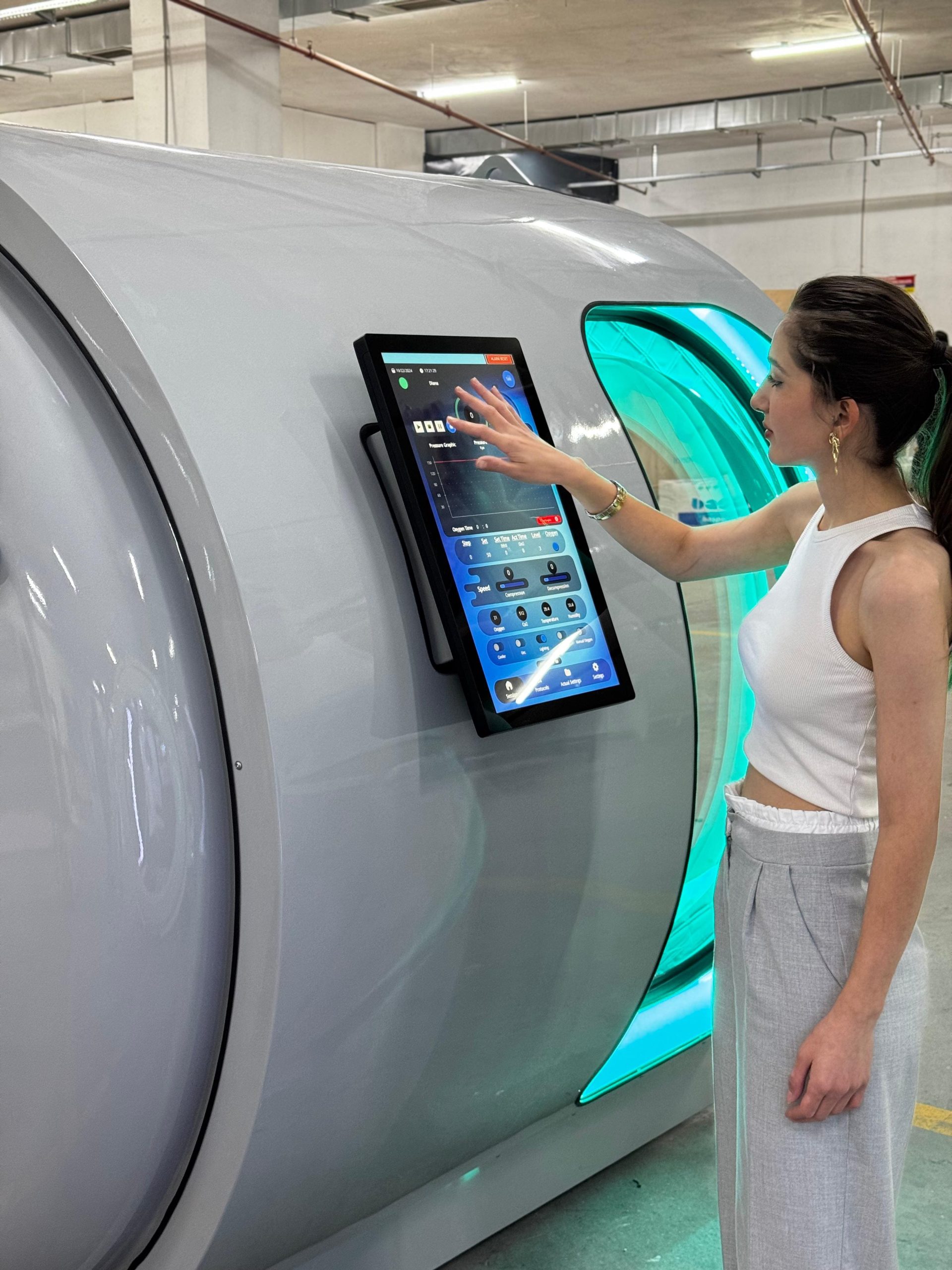

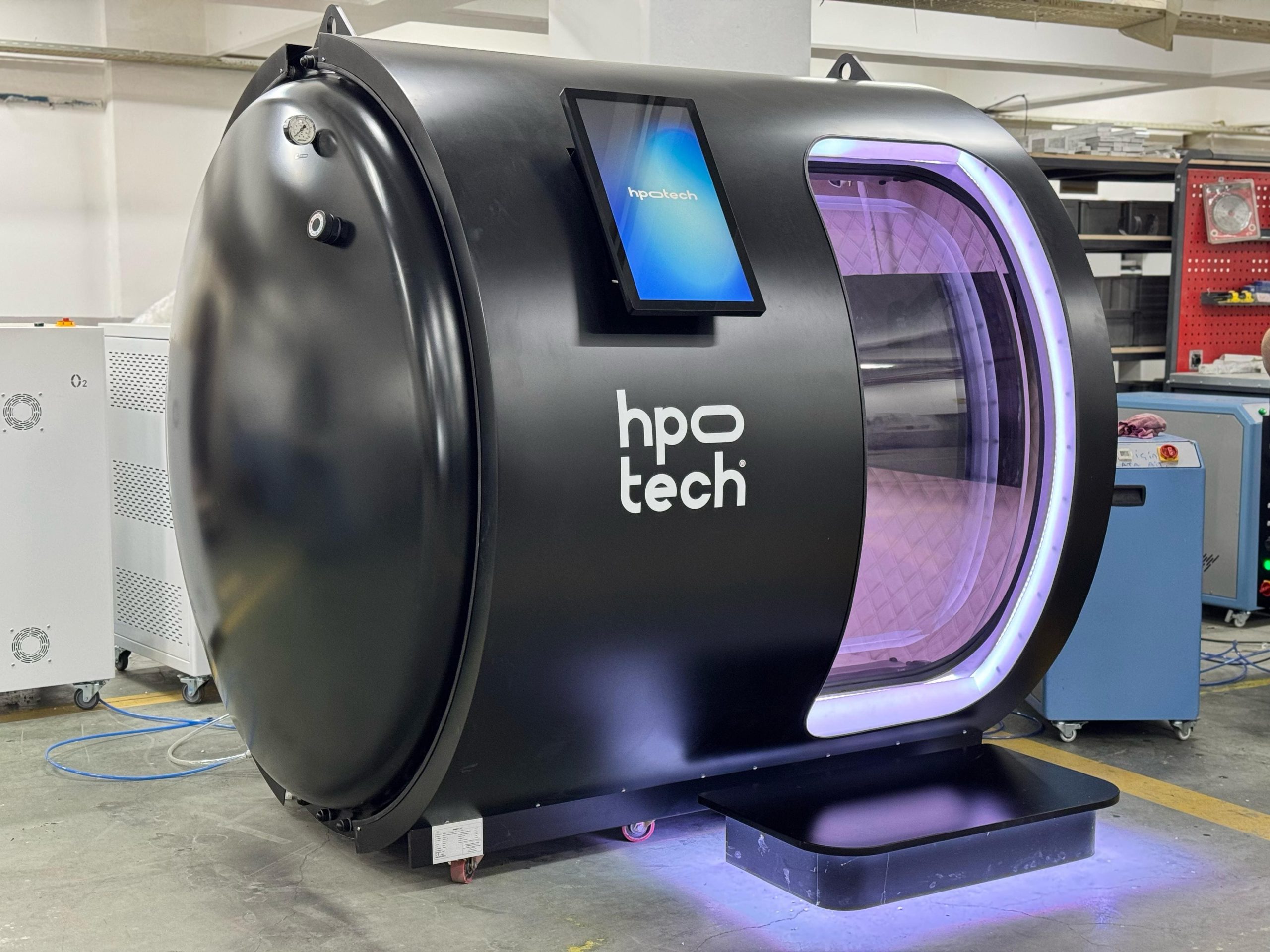

EXTERNAL CONTROL TABLET

Manage everything with the intuitive touchscreen control, from setting the pressure and session parameters to locking the chamber door. Monitor the session with clear visuals and data on chamber pressure, time, and other vital information.

MANUAL COMPRESSION KNOB

Take command with the manual pressure knobs, adjusting compression and decompression independently of the automatic system for greater control.

MANUAL DECOMPRESSION KNOB

Take command with the manual pressure knobs, adjusting compression and decompression independently of the automatic system for greater control.

EXTERNAL INTERCOM

Provides voice connection with the user inside. It’s always open for crystal clear communication with volume control.

EMERGENCY STOP BUTTON

Peace of mind control: Terminates session in the pressure room if needed, and quickly drops chamber pressure to a safe level.

POWER ON SWITCH

Start your session: The switch turns on the electrical equipment, activating the control panels for manual and/or automatic HBOT sessions.

EMERGENCY DECOMPRESSION VALVE

In case of emergency, the pressure chamber is relieved by rotating the manual spherical valve from inside or outside the chamber.

USB PORT

The handy USB 3.0 port helps update the software, upload custom settings, or download your session archive.

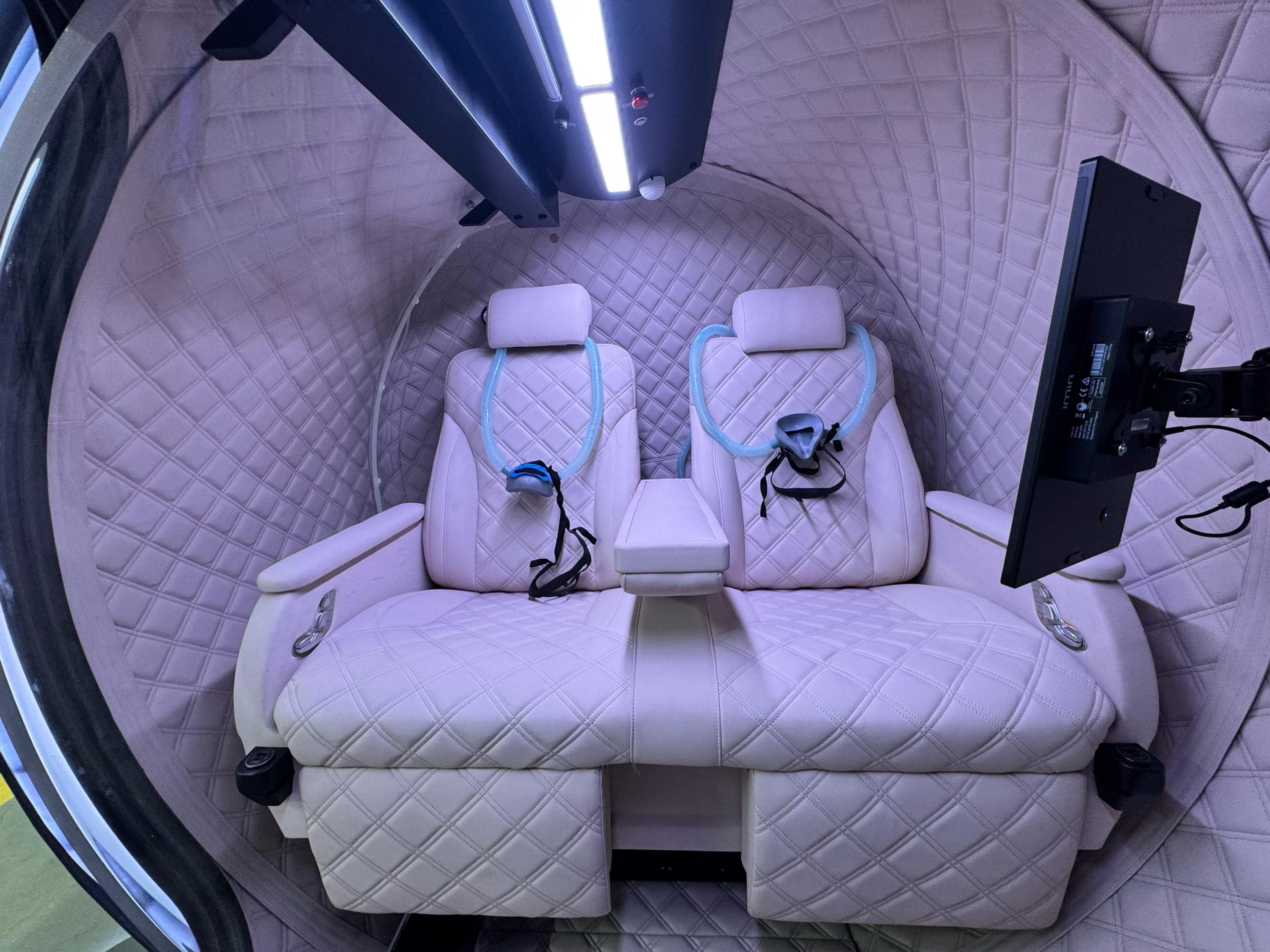

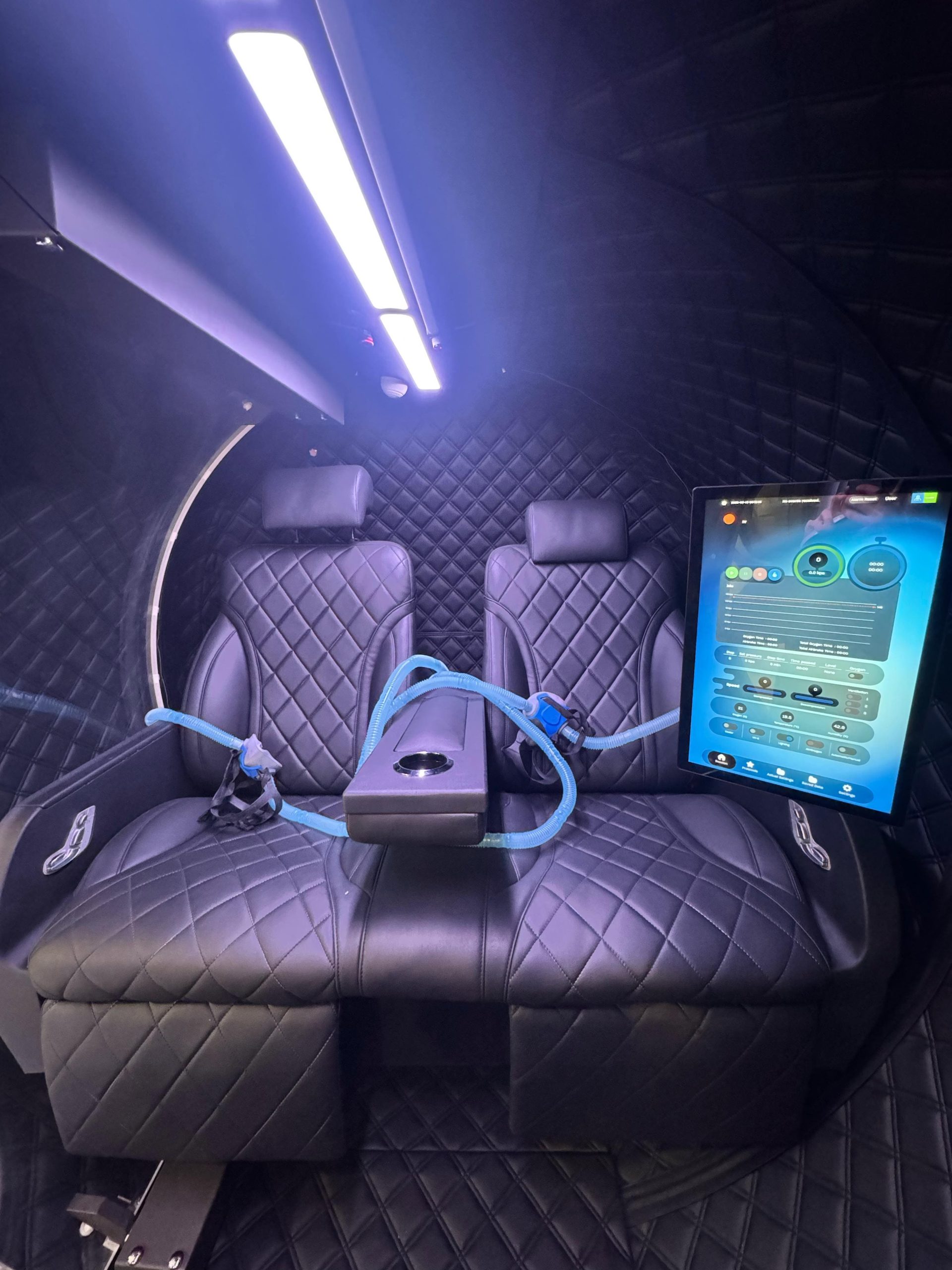

Internal Control Panel

Master your HBOT session from within.

Take charge of your hyperbaric experience with the intuitive internal control panel. Adjust pressure, time, and settings, all while monitoring key information on the built-in displays. You’re always in communication with the outside, all commands are mirrored for outside and inside user control.

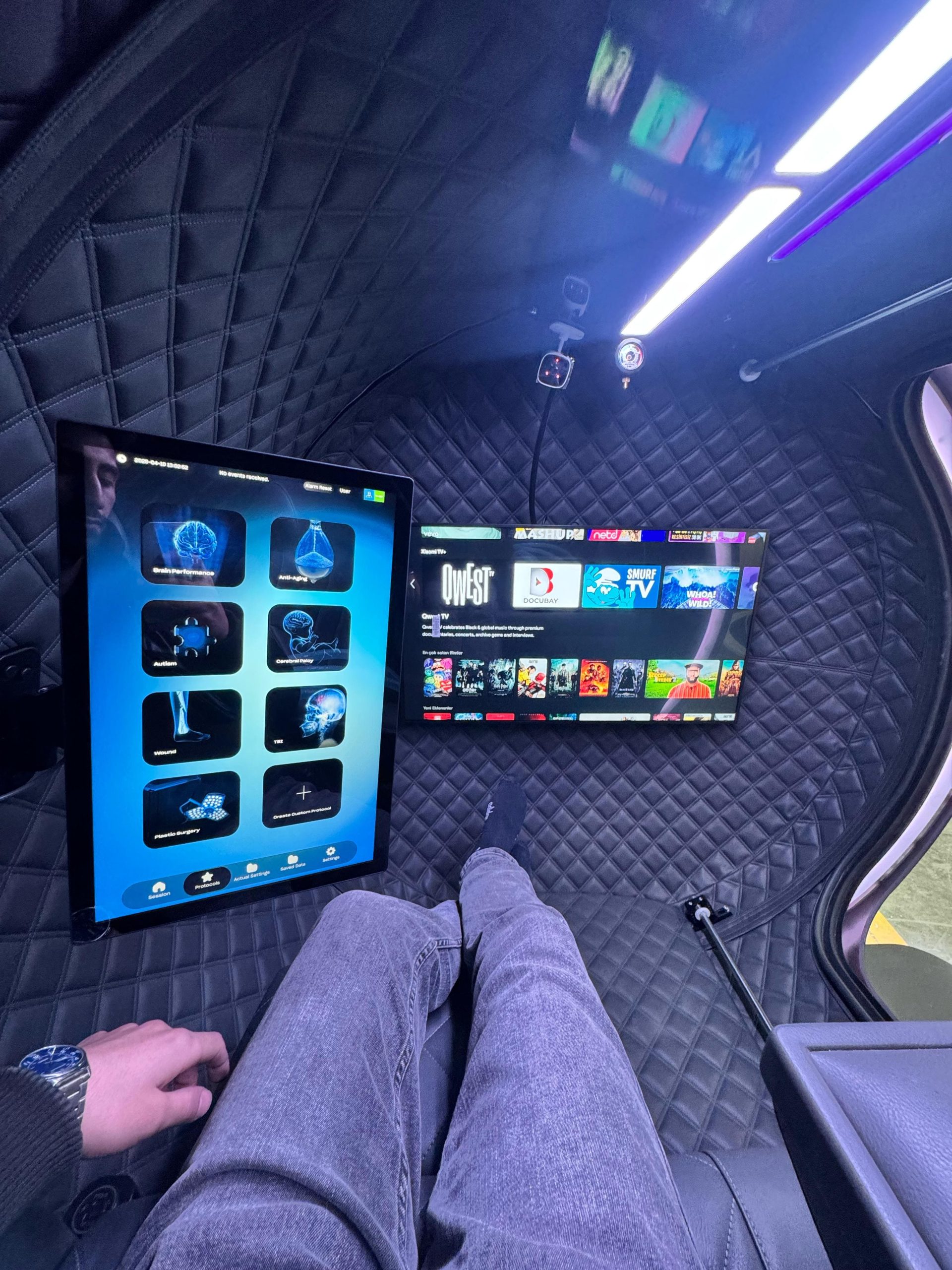

INTERNAL CONTROL TABLET

Manage everything with the intuitive touchscreen control, from setting the pressure and session parameters to locking the chamber door. Monitor the session with clear visuals and data on chamber pressure, time, and other vital information.

CHAMBER PRESSURE INDICATOR

Mechanical dial indicator for quick analog reading of pressure variations inside the chamber.

INTERNAL COOLER

Operated using the control tablet, it adjusts chamber temperature when pressurized for a comfortable HBOT session experience.

INTERNAL INTERCOM

Provides voice communication with outside operators. It’s always open with a crystal clear connection.

EMERGENCY STOP BUTTON

Peace of mind control: Terminates session in the pressure room if needed, and quickly drops chamber pressure to a safe level.

UV-C LIGHT DISINFECTION

The chamber features UV-C light disinfection that inactivates viruses and bacteria from surfaces and ambient air for a clean and safe interior environment.

OCCUPANCY SENSOR

Automatically disables UVC when someone enters pressure chamber, ensuring disinfection and user safety.

Software control

The control consoles, located on the outside and inside the chamber, provide the controls and instrumentation for chamber operation. This includes the gas control systems and communications system. Chamber control is fully automated via the Automation System.

Advanced monitoring & safety systems

HPO TECH systems are equipped with advanced monitoring sensors to track, monitor and control essential parameters during the therapy session. These monitoring capabilities allow healthcare providers to closely observe the patient’s response, adjust treatment if necessary, and assess the overall progress of the therapy.

Automation system

The Automation System controls the chamber and runs sessions automatically. It consists of automation software, industrial PLC, sensors, valves, and PC.

The PLC is the core of the system, monitoring and controlling all connected devices (sensors, valves, etc.). The specific devices and functions controlled depend on customer configuration.

Tracking session progress and user data in real-time

Real-time session information is gathered from sensors and displayed to monitor session status.

The monitoring systems track essential parameters, including atmospheric pressure, oxygen concentration, temperature, humidity, patient vitals, and treatment duration. Real-time monitoring enhances patient safety and empowers the medical team to make informed decisions.

Session status management

  • Automatic session control for speed, pressure, and time
  • Entry of new treatment profiles
  • Chamber ventilation
  • I/O calibration and other functions
  • Logging, reviewing, and printing tools
  • Session and patient information access
  • Opening sessions for Automation Software
  • Valve control by dimmer
  • Lighting On/Off
  • UVC On/Off
  • Radiator On/Off
  • Real-time monitoring of temperature, humidity, pressure, and oxygen
  • Audio/visual warnings to the operator
  • Audible warning signal and safety button
  • Valve openings or maximum compression/decompression rate settings
  • Ear opening assistance
  • Session recording
